Silicone Rubber Insulated Twisted Pair with Braided Screen (200°C)

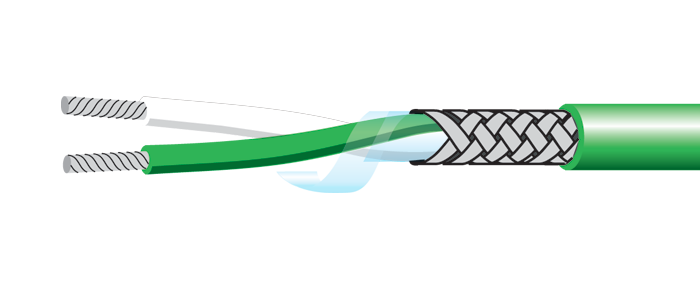

We supply silicone rubber cable with 7/0.3mm dia (Type N: 16/0.2mm dia) conductors in thermocouple cable types KX, KCB, TX, JX, NX or RCA/SCA. Each conductor is insulated in silicone rubber. The cores are then twisted, screened with Mylar® tape, nickel plated copper wire braided and then overall sheathed in silicone rubber. All conductors used (except for compensating cable) are made from the relevant thermocouple material and meets IEC 60584-1 Class 2 : 2013 up to the maximum operating temperature of the insulating material. The insulation material is colour coded to IEC 60584-3 as shown below.
- Single pair, 7/0.3mm dia (Type N: 16/0.2mm) twisted, screened with Mylar® tape, Nickel plated Copper wire braided and overall sheathed construction
- Silicone Rubber rated to -40°C to 200°C (or 250°C short term)
- Colour coded:-
Type KX green outer sheath, green positive core and white negative core
Type KCB green outer sheath, green positive core and white negative core
Type TX brown outer sheath, brown positive core and white negative core
Type JX black outer sheath, black positive core and white negative core
Type NX pink outer sheath, pink positive core and white negative core
Type RCA/SCA orange outer sheath, orange positive core and white neg. core
- Available in a variety of lengths
- Easy connection to our range of sensors via our range of connector systems or via the rear terminals on our range of indicators, controllers and programmers
The following types are available:
