Ceramic Fibre Insulated Flat Twin with Inconel 600 Braid (1200°C)
This ceramic coated cable has outstanding performance at high temperatures, being able to see and experience temperatures far higher than most other thermocouple cables. Each conductor is ceramic fibre braided, the pair is then laid flat and ceramic fibre braided with an overall Inconel 600 braid. This cable can be useful for kiln and furnace applications, heat treatment, component testing, metals production and more, however due to the woven construction it is not advisable to use this in a vacuum. Due to the ceramic make up, the cable is naturally quite brittle and must be handled with care at all times.

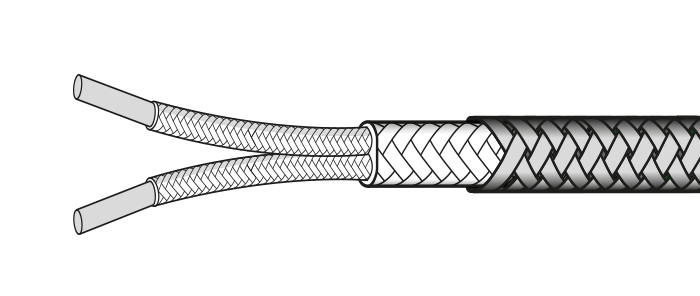

1/0.8mm dia laid flat sheathed construction with overall Inconel 600 braid
Type KX and NX available, without colour tracers
Extremely wide temperature range
Insulation: Ceramic Fibre, rated from -185 to 1200°C
Available in a variety of lengths
Outstanding high temperature performance
The following types are available:
Order Code
Description
1 - 4
5 - 9
10+
Buy
818-340
25 metre reel - Type KX
$1,049.00
$972.00
$906.00
Add
818-343
50 metre reel - Type KX
$1,896.00
$1,762.00
$1,641.00
Add
818-344
100 metre reel - Type KX
$3,403.00
$3,168.00
$2,957.00
Add
818-348
200 metre reel - Type KX
$6,026.00
$5,619.00
$5,262.00
Add
Order Code
Description
1 - 4
5 - 9
10+
Buy
818-350
25 metre reel - Type NX
$1,135.00
$1,052.00
$979.00
Add
818-352
50 metre reel - Type NX
$2,046.00
$1,899.00
$1,767.00
Add
818-354
100 metre reel - Type NX
$3,665.00
$3,408.00
$3,175.00
Add
818-356
200 metre reel - Type NX
$6,470.00
$6,026.00
$5,634.00
Add
