Ceramic Fibre Insulated Flat Twin (1200°C)

Ceramic Fibre Insulated Flat Twin (1200°C) view larger image

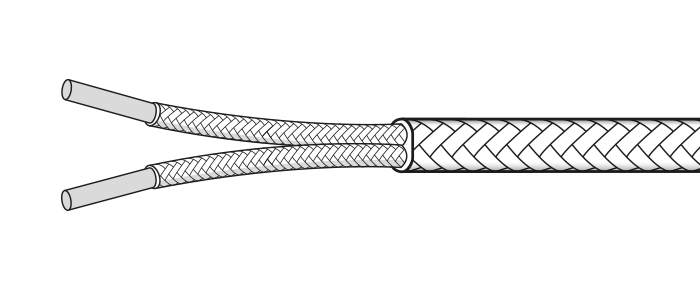

This ceramic fibre insulated cable has outstanding performance at high temperatures, being able to see and experience temperatures far higher than most other thermocouple cables. Each conductor is ceramic fibre braided, the pair is then laid flat and ceramic fibre braided overall. This cable can be useful for kiln and furnace applications, heat treatment, component testing, metals production and more, however due to the woven construction it is not advisable to use this in a vacuum. Due to the ceramic make up, the cable is naturally quite brittle and must be handled with care at all times.
  • 1/0.8mm dia laid flat and overall sheathed construction
  • Type KX and NX available, without colour tracers
  • Extremely wide temperature range, rated from -185 to 1200°C
  • Available in a variety of lengths
  • Outstanding high temperature performance
The following types are available:

Type KX - 1/0.8mm Ceramic Fibre Insulated Flat Twin Thermocouple Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
818-300 25 metre reel - Type KX $893.00 $814.00 $745.00 Add
818-302 50 metre reel - Type KX $1,579.00 $1,439.00 $1,318.00 Add
818-304 100 metre reel - Type KX $2,749.00 $2,505.00 $2,292.00 Add
818-306 200 metre reel - Type KX $4,679.00 $4,264.00 $3,903.00 Add

Type NX - 1/0.8mm Ceramic Fibre Insulated Flat Twin Thermocouple Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
818-320 25 metre reel - Type NX $937.00 $856.00 $785.00 Add
818-322 50 metre reel - Type NX $1,654.00 $1,509.00 $1,382.00 Add
818-324 100 metre reel - Type NX $2,880.00 $2,631.00 $2,405.00 Add
818-326 200 metre reel - Type NX $4,904.00 $4,470.00 $4,096.00 Add
