Fibreglass Insulated Flat Twin (480°C)

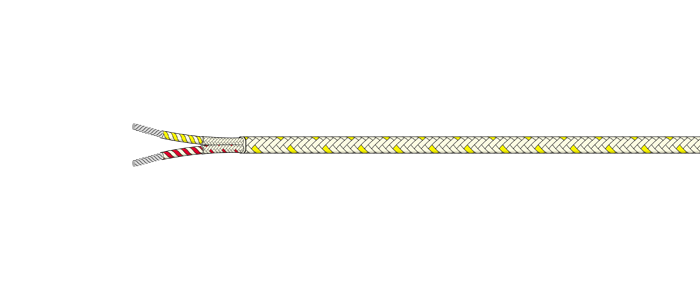

We supply 7/0.2mm, 13/0.2mm dia stranded or 1/0.8mm, 1/0.5mm and 1/0.3mm dia solid cable in 25, 50, 100 or 200 metre lengths in thermocouple types KX, TX, JX, NX or RCA/SCA. Each conductor is insulated in fibreglass, the cores are laid flat and then overall sheathed in fibreglass. All conductors used are made from the relevant thermocouple material and meets IEC 60584-1 Class 2 : 2013 up to 480°C. The insulation material is colour coded to ANSI MC96.1 as shown below.
- 7/0.2mm, 13/0.2mm, 1/0.8mm, 1/0.5mm or 1/0.3mm dia laid flat and overall sheathed construction
- Insulation: Fibreglass rated to 480°C
- Colour coded (colour tracer):-
Type KX: yellow outer sheath, yellow positive wire and red negative wire
Type TX: blue outer sheath, blue positive wire and red negative wire
Type JX: black outer sheath, white positive wire and red negative wire
Type NX: orange outer sheath, orange positive wire and red negative wire
Type RX/SX: green outer sheath, black positive wire and red negative wire
- Available in a variety of lengths
- Easy connection to our range of sensors via our range of connector systems or the rear terminals on our range of indicators, controllers and programmers
The following types are available:
