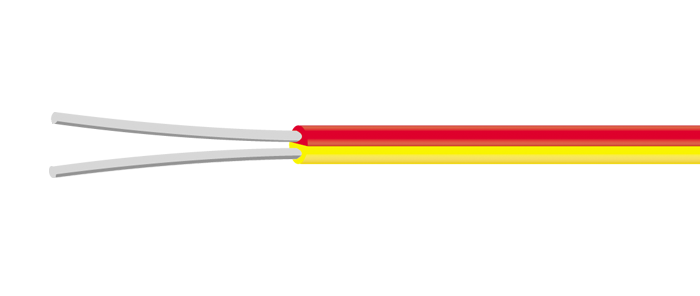

PTFE Insulated ‘Single Shot’ Thermocouple Cable
One pair of solid 0.376mm diameter conductors are laid flat and PTFE sheathed in a ‘single shot’ construction. This cable provides a gas,
steam and water tight insulation even under pressure or vacuum. This cable is ideally suited to autoclave and aerospace applications and is resistant to virtually all known chemicals, oils and fluids. It has a wide operating temperature range and is also particularly suited to cryogenic applications.
- Thermocouple types K, T, J
- 0.376mm dia solid conductor
- Operating range: -75°C to +250°C
- PTFE insulated single shot construction, circular construction
- Resistant to chemicals, oils and fluids
- Widely used in autoclave applications
- Colour coded :-
Type KX extension cable: yellow / red
Type JX extension cable: black / red
Type TX extension cable: blue / red
- Suitable for aerospace applications
The following types are available:
