PFA Insulated Twisted Pair with Screen (250°C)

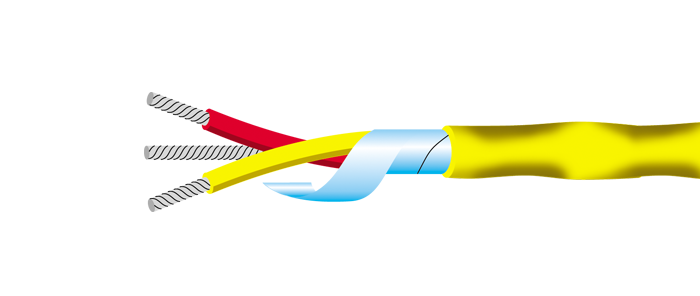

We supply 7/0.2mm or 13/0.2mm dia stranded cable in 25, 50, 100 or 200 metre lengths in thermocouple types KX, TX, JX, NX or RCA/SCA. Each conductor is insulated in PFA, the cores are twisted, screened with aluminium Mylar tape in contact throughout with a tinned copper drainwire, then overall sheathed in PFA. All conductors used are made from the relevant thermocouple material and meets IEC 60584-1 Class 2 : 2013 up to 250°C. The insulation material is colour coded to ANSI MC96.1 as shown below.
- 7/0.2mm or 13/0.2mm dia twisted pair, screened with Aluminium Mylar tape and overall sheathed construction
- Insulation: PFA, rated to 250°C
- Colour coded:-
Type KX: yellow outer sheath, yellow positive wire and red negative wire
Type TX: blue outer sheath, blue positive wire and red negative wire
Type JX: black outer sheath, white positive wire and red negative wire
Type NX: orange outer sheath, orange positive wire and red negative wire
Type RX/SX: green outer sheath, black positive wire and red negative wire
- Available in a variety of lengths
- Easy connection to our range of sensors via our range of connector systems or the rear terminals on our range of indicators, controllers and programmers
The following types are available:
