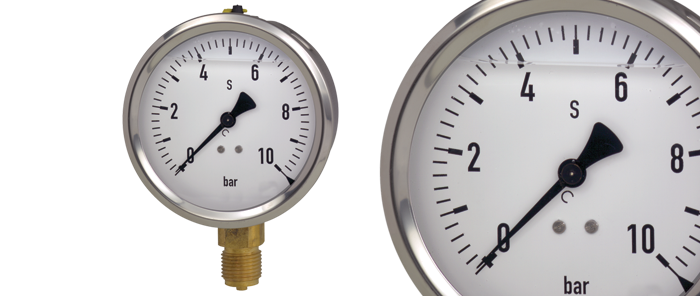

63mm Glycerine Filled High Dynamic Pressure Gauge

63mm Glycerine Filled High Dynamic Pressure Gauge view larger image
This Bourdon Tube pressure gauge is an ideal choice for measuring points with high dynamic or pulsating pressure in any gaseous or liquid media that will not attack the copper alloy parts or obstruct the pressure system. It is available with either a back or a bottom entry and is ideal for use in hydraulics, compressors and shipbuilding applications as well as other industrial processes. It has a clearly visible white dial and with a stainless steel case, is of especially sturdy design.
  • 1/4" BSPP connection thread
  • Accuracy Class: 1.6
  • Glycerine filled for dynamic pressure pulsations
  • 63mm white dial with black pointer
  • Operating temperature of medium: 60°C max (ambient 0°C to +60°C)
  • Working Pressure:Steady: 3/4 of full scale value, Fluctuating: 2/3 of full scale value, Short time: Full scale value
The following types are available:

63mm Glycerine Filled High Dynamic Pressure Gauge

Order Code Description 1 - 4 5 - 9 10+ Buy
717-103 -1 bar - Back Entry $66.00 $60.00 $56.00 Add
717-139 25 bar - Back Entry $66.00 $60.00 $56.00 Add
717-145 40 bar - Back Entry $66.00 $60.00 $56.00 Add
717-151 60 bar - Back Entry $66.00 $60.00 $56.00 Add
717-157 100 bar - Back Entry $66.00 $60.00 $56.00 Add
717-158 100 bar - Bottom Entry $66.00 $60.00 $56.00 Add
717-163 160 bar - Back Entry $66.00 $60.00 $56.00 Add
717-169 250 bar - Back Entry $66.00 $60.00 $56.00 Add
