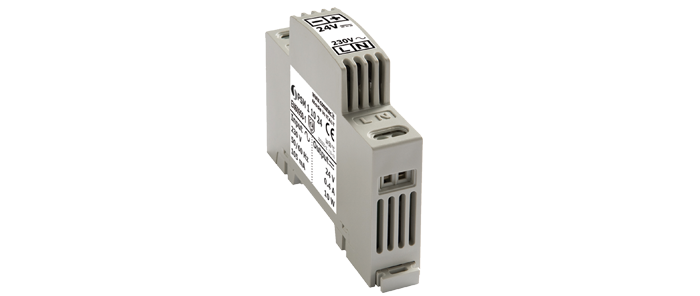

Regulated Switch Mode Loop Power Supply
Our DIN rail mounting regulated switch mode loop power supply provides 0.4A, so can be used to power up to fifteen 4-20mA devices. Switching technology allows high efficiency from a light and small device. The regulated 24 VDC output is very accurate and stable and is not affected by the load power level.
- DIN Rail mounting
- Input supply voltage: Nominal 230V AC
- Output regulated voltage: 24V DC high accuracy +/- 3%
- Output current: 0.4 A (suitable for up to 15 devices)
- No-load voltage 24V DC
- High efficiency of 85% and very low no load input power 0.3 W
- Electronic protection for overload, short circuit and over voltage
- Power consumption max.: 10W
- Dimensions: 93x17.5x68mm (HxWxD), weight 0.11 Kg
- Protection class: IP20
- Operating ambient temperature: -10ºC to 40ºC
The following types are available:
