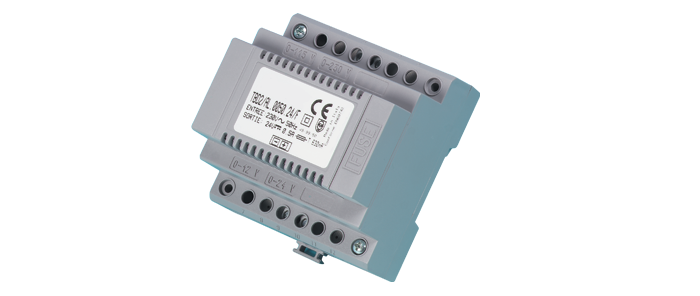

24V Loop Power Supply
Our DIN rail mounting loop power supplies 0.5A, so can be used to power up to twenty 4-20mA devices. They have a built in transformer that ensures galvanic separation. They also have fused protection. An ideal partner for our range of transmitters.
- DIN Rail mounting
- Input supply voltage: Nominal 230V AC
- Output voltage: 24V DC
- Output current: 0.5 A (suitable for up to 20 devices)
- Fused protection
- Power consumption: 12W
- Dimensions: 93x88x67mm (HxWxD)
- Protection class: IP20
- Operating ambient temperature: -10ºC to 40ºC
This power supply cannot be used with some of our transmitters. If unsure, please purchase the regulated version or contact us for advice
The following types are available:
