Cartridge Heaters

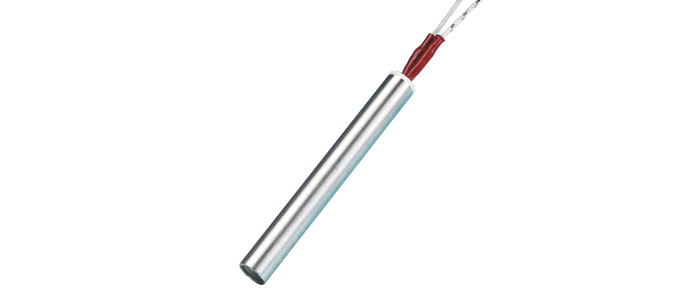

Cartridge Heaters view larger image
We have an extensive range of cartridge heaters to suit a wide variety of applications. Our cartridge heaters incorporate 80/20 Nickel Chromium heating wires mounted on a ceramic former close to the ceramic lined thin wall stainless steel sheath which gives excellent thermal conductivity and are ideal for high wattage applications or for applications requiring long life due to their self protective oxidation properties.

Technical specifications:

  • Supply voltage: 230V AC
  • Sheath Material: Stainless steel
  • Connection Lead Length: 250mm
  • Connection Lead Insulation: Silicone impregnated Fibreglass
  • Working temperature: 400°C maximum

    Warning

    Whilst the elements are insulated from the sheath by magnesium oxide powder, for safety reasons the heater block and/or cartridge heater must be bonded to earth.

The following types are available:

230V AC Rated Cartridge Heaters - 6.5mm Dia

Order Code Description 1 - 9 10 - 24 25+ Buy
921-100 40mm long – 160W $41.60 $37.90 $34.70 Add
921-106 40mm long - 175W $41.60 $37.90 $34.70 Add
921-112 50mm long - 180W $41.80 $38.10 $35.00 Add
921-118 50mm long - 200W $41.80 $38.10 $35.00 Add
921-124 80mm long - 250W $46.90 $43.00 $39.30 Add
921-130 80mm long - 315W $46.90 $43.00 $39.30 Add
921-136 100mm long - 350W $48.60 $44.50 $40.80 Add
921-142 130mm long - 400W $53.00 $48.10 $44.00 Add
921-148 160mm long - 450W $57.00 $52.00 $47.00 Add

230V AC Rated Cartridge Heaters - 10mm Dia

Order Code Description 1 - 9 10 - 24 25+ Buy
921-307 40mm long – 160W $41.80 $38.10 $35.00 Add
921-313 50mm long – 200W $41.80 $38.10 $35.00 Add
921-319 50mm long - 400W $41.80 $38.10 $35.00 Add
921-325 60mm long - 200W $44.10 $40.30 $36.80 Add
921-331 80mm long - 200W $46.70 $42.60 $39.10 Add
921-337 80mm long - 250W $46.70 $42.60 $39.10 Add
921-343 80mm long - 315W $46.70 $42.60 $39.10 Add
921-355 100mm long – 315W $48.90 $44.70 $40.90 Add
921-361 100mm long - 500W $48.90 $44.70 $40.90 Add
921-367 100mm long - 850W $48.90 $44.70 $40.90 Add
921-373 130mm long – 315W $54.00 $48.60 $44.50 Add
921-379 130mm long – 500W $54.00 $48.60 $44.50 Add
921-385 130mm long – 750W $54.00 $48.60 $44.50 Add
921-391 160mm long – 500W $57.00 $52.00 $47.00 Add
921-397 160mm long – 800W $57.00 $52.00 $47.00 Add

230V AC Rated Cartridge Heaters - 12.5mm Dia

Order Code Description 1 - 9 10 - 24 25+ Buy
921-602 50mm long – 250W $42.10 $38.50 $35.20 Add
921-608 60mm long – 250W $45.20 $41.40 $37.80 Add
921-614 60mm long – 400W $45.20 $41.40 $37.80 Add
921-620 80mm long – 400W $48.00 $43.80 $40.00 Add
921-632 100mm long – 500W $51.00 $46.10 $42.10 Add
921-638 100mm long – 800W $51.00 $46.10 $42.10 Add
921-644 100mm long – 1000W $51.00 $46.10 $42.10 Add
921-650 130mm long – 800W $54.00 $49.20 $45.00 Add
921-656 160mm long – 800W $60.00 $55.00 $49.20 Add
921-662 160mm long – 1000W $60.00 $55.00 $49.20 Add
921-668 180mm long – 630W $63.00 $57.00 $52.00 Add
921-674 200mm long – 1000W $66.00 $60.00 $56.00 Add
921-680 250mm long – 1250W $71.00 $64.00 $59.00 Add
921-686 300mm long – 1500W $72.00 $65.00 $60.00 Add

230V AC Rated Cartridge Heaters - 16mm Dia

Order Code Description 1 - 9 10 - 24 25+ Buy
921-800 50mm long – 200W $46.70 $42.60 $39.10 Add
921-806 80mm long – 400W $52.00 $46.90 $43.00 Add
921-812 80mm long – 630W $52.00 $46.90 $43.00 Add
921-818 100mm long – 500W $57.00 $51.00 $46.40 Add
921-824 100mm long – 800W $57.00 $51.00 $46.40 Add
921-830 130mm long – 1000W $61.00 $55.00 $49.60 Add
921-836 160mm long – 1000W $61.00 $55.00 $49.60 Add
921-842 180mm long – 1000W $65.00 $60.00 $56.00 Add
921-848 200mm long – 1500W $67.00 $63.00 $58.00 Add
921-860 250mm long – 1250W $74.00 $67.00 $61.00 Add
921-866 250mm long – 1600W $74.00 $67.00 $61.00 Add
921-872 300mm long – 1500W $79.00 $72.00 $65.00 Add

230V AC Rated Cartridge Heaters - 1/4" Dia

Order Code Description 1 - 9 10 - 24 25+ Buy
922-100 1.5 in long - 160W $49.80 $45.60 $41.60 Add
922-106 1.5 in long - 175W $49.80 $45.60 $41.60 Add
922-112 2.0 in long - 180W $51.00 $46.20 $42.20 Add
922-118 2.0 in long - 200W $51.00 $46.20 $42.20 Add
922-124 3.0 in long - 250W $58.00 $52.00 $47.10 Add
922-130 3.0 in long - 315W $58.00 $52.00 $47.10 Add
922-136 4.0 in long - 350W $60.00 $54.00 $48.70 Add
922-142 5.0 in long - 400W $64.00 $59.00 $53.00 Add
922-148 6.0 in long - 450W $69.00 $63.00 $58.00 Add

230V AC Rated Cartridge Heaters - 3/8" Dia

Order Code Description 1 - 9 10 - 24 25+ Buy
922-307 1.5 in long - 160W $51.00 $46.20 $42.20 Add
922-313 2.0 in long - 200W $51.00 $46.20 $42.20 Add
922-319 2.0 in long - 400W $51.00 $46.20 $42.20 Add
922-325 2.5 in long - 200W $54.00 $48.50 $44.40 Add
922-331 3.0 in long - 200W $57.00 $51.00 $46.70 Add
922-337 3.0 in long – 315W $57.00 $51.00 $46.70 Add
922-343 3.0 in long - 400W $57.00 $51.00 $46.70 Add
922-349 3.5 in long - 500W $59.00 $53.00 $48.50 Add
922-355 4.0 in long - 315W $60.00 $54.00 $48.90 Add
922-361 4.0 in long - 500W $60.00 $54.00 $48.90 Add
922-367 4.0 in long - 700W $60.00 $54.00 $48.90 Add
922-373 5.0 in long - 315W $65.00 $59.00 $55.00 Add
922-379 5.0 in long - 500W $65.00 $59.00 $55.00 Add
922-385 5.0 in long - 750W $65.00 $59.00 $55.00 Add
922-391 6.0 in long - 500W $69.00 $63.00 $58.00 Add
922-397 6.0 in long - 800W $69.00 $63.00 $58.00 Add

230V AC Rated Cartridge Heaters - 1/2" Dia

Order Code Description 1 - 9 10 - 24 25+ Buy
922-602 2.0 in long - 250W $51.00 $46.10 $42.10 Add
922-608 2.5in long - 250W $56.00 $49.40 $45.30 Add
922-614 2.5 in long - 400W $56.00 $49.40 $45.30 Add
922-620 3.0 in long - 400W $59.00 $53.00 $48.10 Add
922-632 4.0 in long - 500W $62.00 $56.00 $51.00 Add
922-638 4.0 in long - 800W $62.00 $56.00 $51.00 Add
922-644 4.0 in long - 1000W $62.00 $56.00 $51.00 Add
922-650 5.0 in long - 800W $65.00 $60.00 $56.00 Add
922-656 6.0 in long - 800W $73.00 $66.00 $60.00 Add
922-662 6.0 in long - 1000W $73.00 $66.00 $60.00 Add
922-668 7.0 in long - 630W $76.00 $70.00 $63.00 Add
922-674 8.0 in long - 1000W $79.00 $73.00 $66.00 Add
922-680 10.0 in long - 1250W $84.00 $76.00 $70.00 Add
922-686 12.0 in long - 1500W $85.00 $78.00 $72.00 Add

230V AC Rated Cartridge Heaters - 5/8" Dia

Order Code Description 1 - 9 10 - 24 25+ Buy
922-800 2.0 in long - 200W $57.00 $51.00 $46.70 Add
922-806 3.0 in long - 400W $63.00 $57.00 $52.00 Add
922-812 3.0 in long - 630W $63.00 $57.00 $52.00 Add
922-818 4.0 in long - 500W $67.00 $61.00 $57.00 Add
922-824 4.0 in long - 800W $67.00 $61.00 $57.00 Add
922-830 5.0 in long - 1000W $73.00 $66.00 $61.00 Add
922-836 6.0 in long - 1000W $73.00 $66.00 $61.00 Add
922-842 7.0 in long - 1000W $79.00 $72.00 $66.00 Add
922-848 8.0 in long - 1000W $81.00 $75.00 $69.00 Add
922-860 10.0 in long - 1250W $87.00 $80.00 $74.00 Add
922-866 10.0 in long - 1600W $87.00 $80.00 $74.00 Add
922-872 12.0 in long - 1500W $94.00 $86.00 $79.00 Add
