Miniature RTD Connectors

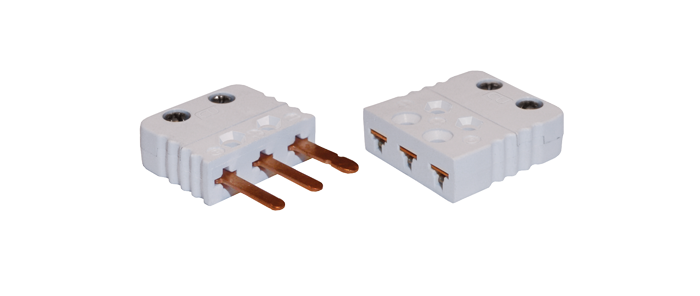

Miniature RTD Connectors view larger image
These flat pin miniature connectors are ideal for connecting RTD sensors and RTD extension cable to each other. The three pins are polarised to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -50ºC and +220ºC. In addition to the plug and socket, a panel socket is available on request along with matching anodised aluminium connector panels. Weatherproof silicone rubber boots are also available for added protection in moist environments.
  • For connection to 3 wire sensors or cable
  • Body: Thermoplastic compound rated -50ºC to +220ºC
  • Suitable for 0.002mm up to 0.8mm wire diameters
  • Colour coded - White
  • Dimensions: Plug 19x23.9x8mm (LxWxD) with 12mm long pins. Socket 25.4x23.9x8mm (LxWxD).
  • Manufactured by the TC Group
The following types are available:

Miniature RTD Connectors

Order Code Description 1 - 9 10 - 24 25+ Buy
733-130 Miniature RTD Plug $7.90 $7.30 $6.60 Add
733-132 Miniature RTD Socket $7.90 $7.30 $6.60 Add
724-780 Miniature Cable Grommet (0.5mm ID) $0.75 $0.70 $0.65 Add
724-782 Miniature Cable Grommet (1.0mm ID) $0.75 $0.70 $0.65 Add
724-784 Miniature Cable Grommet (1.5mm ID) $0.75 $0.70 $0.65 Add
724-786 Miniature Cable Grommet (3.0mm ID) $0.75 $0.70 $0.65 Add
724-790 Miniature Cable Clamp (One per connector) $3.00 $2.80 $2.60 Add
724-802 Miniature Silicone Rubber Boot (One per connector) $6.50 $5.90 $5.60 Add
