Barrier Terminal Blocks (rated to 220°C)

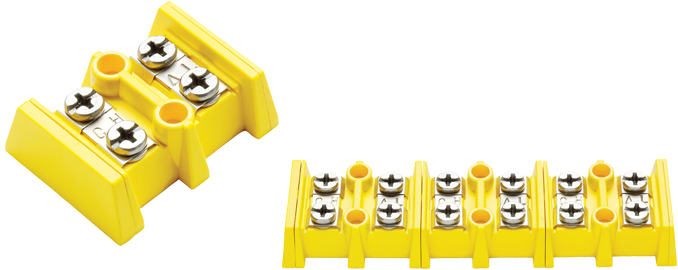

These interconnecting barrier terminal blocks are available in various thermocouple types as well as copper, for other sensors such as RTDs. Each single block comes complete with end caps and terminal lugs which are marked to identify the alloy and polarity. All are colour coded for easy identification and are temperature rated to 220°C. They can be clipped together via notches on the side of each unit to build a multi-channel connection and can be screwed down using the mounting holes in the middle of each block. The number of blocks ordered should depend on the number of pairs of wires that are required to be connected.

Available in thermocouple types K, T, J, N, RCB/SCB, E or B as well as Copper
Supplied complete with terminal lugs and end caps
Color coded to ANSI MC96.1-1982
Connected together via notches on the side of each block
Dimensions (including fins): 30x13x38.9mm (HxWxL)
Fixing holes: To suit M2.5 screws on 15.4mm centre holes

The following types are available:

Barrier Terminal Blocks (rated to 220°C)

Barrier Terminal Blocks (rated to 220°C)

Order Code	Description	1 - 9	10 - 24	25+	Buy
526-200	Type K 1 Channel - Yellow	$7.90	$7.30	$6.60	Add
526-205	Type T 1 Channel - Blue	$7.90	$7.30	$6.60	Add
526-210	Type J 1 Channel - Black	$7.90	$7.30	$6.60	Add
526-215	Type N 1 Channel - Orange	$7.90	$7.30	$6.60	Add
526-220	Type RX/SX 1 Channel - Green	$7.90	$7.30	$6.60	Add
526-225	Type E 1 Channel - Purple	$7.90	$7.30	$6.60	Add
526-230	Type B 1 Channel - Grey	$7.90	$7.30	$6.60	Add
526-235	Copper 1 Channel - White	$7.90	$7.30	$6.60	Add
726-130	Spare Lugs - Type K	$5.30	$5.00	$4.50	Add
726-132	Spare Lugs - Type T	$5.30	$5.00	$4.50	Add
726-134	Spare Lugs - Type J	$5.30	$5.00	$4.50	Add
726-136	Spare Lugs - Type N	$5.30	$5.00	$4.50	Add
726-138	Spare Lugs - Type RX/SX	$5.30	$5.00	$4.50	Add
726-142	Spare Lugs - Type E	$5.30	$5.00	$4.50	Add
726-144	Spare Lugs - Type B	$5.30	$5.00	$4.50	Add
726-140	Spare Lugs - Copper	$5.30	$5.00	$4.50	Add
