Miniature Duplex Thermocouple Connectors (220ºC)

These flat pin duplex versions of our miniature connectors are ideal for connecting duplex thermocouple sensors and extension or compensating cable to each other. The pins are polarised to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -50ºC and +210ºC.

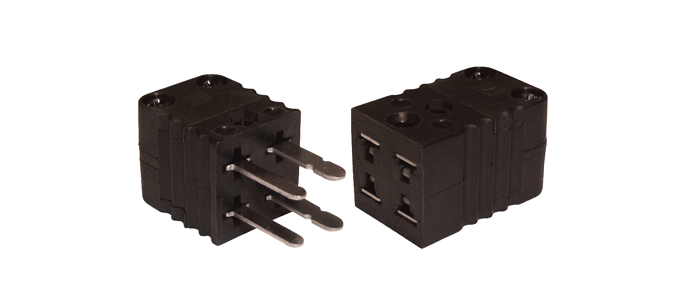

Duplex miniature thermocouple connector
Body: Thermoplastic compound rated -50ºC to +220ºC
Suitable for wire diameters up to 0.8mm
Color coded to ANSI MC96.1-1982. Type K - Yellow, Type T - Blue, Type J - Black, Type N - Orange and Type RX/SX - Green
Dimensions: Plug 19x16x16mm (LxWxD) with 12mm long pins. Socket 25x16x16mm (LxWxD)
Manufactured by the TC Group

The following types are available:

Miniature Duplex Thermocouple Connectors (rated to 220ºC)

Miniature Duplex Thermocouple Connectors (rated to 220ºC)

Order Code	Description	1 - 9	10 - 24	25+	Buy
524-703	Duplex Type K Miniature Plug	$12.50	$11.50	$10.40	Add
524-705	Duplex Type K Miniature Socket	$12.50	$11.50	$10.40	Add
524-707	Duplex Type T Miniature Plug	$12.50	$11.50	$10.40	Add
524-709	Duplex Type T Miniature Socket	$12.50	$11.50	$10.40	Add
524-711	Duplex Type J Miniature Plug	$12.50	$11.50	$10.40	Add
524-713	Duplex Type J Miniature Socket	$12.50	$11.50	$10.40	Add
524-715	Duplex Type N Miniature Plug	$12.50	$11.50	$10.40	Add
524-717	Duplex Type N Miniature Socket	$12.50	$11.50	$10.40	Add
524-719	Duplex Type RX/SX Miniature Plug	$12.50	$11.50	$10.40	Add
524-721	Duplex Type RX/SX Miniature Socket	$12.50	$11.50	$10.40	Add
724-723	Duplex Copper Miniature Plug	$12.50	$11.50	$10.40	Add
724-725	Duplex Copper Miniature Socket	$12.50	$11.50	$10.40	Add
724-780	Miniature Cable Grommet (0.5mm ID)	$0.75	$0.70	$0.65	Add
724-782	Miniature Cable Grommet (1.0mm ID)	$0.75	$0.70	$0.65	Add
724-784	Miniature Cable Grommet (1.5mm ID)	$0.75	$0.70	$0.65	Add
724-786	Miniature Cable Grommet (3.0mm ID)	$0.75	$0.70	$0.65	Add
724-795	Miniature Cable Clamp (One per connector)	$3.00	$2.80	$2.60	Add
