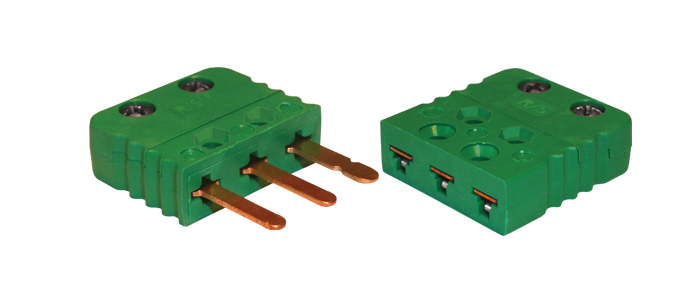

Miniature 3 Pin Thermocouple Connectors (rated to 220ºC)

Miniature 3 Pin Thermocouple Connectors (rated to 220ºC) view larger image
These 3 pin flat pin miniature connectors are ideal for connecting thermocouple sensors and extension or compensating cables with a screen to each other. The pins are polarised to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -50ºC and +210ºC.
  • 3 pin version - ideal for connecting cables with a screen
  • Body: Thermoplastic compound rated -50ºC to +220ºC
  • Suitable for wire diameters up to 0.8mm
  • Color coded to ANSI MC96.1-1982
  • Dimensions: Plug 19x24x8mm (LxWxD) with 12mm long pins. Socket 25x24x8mm (LxWxD)
  • Manufactured by the TC Group
The following types are available:

Miniature 3 Pin Thermocouple Connectors (rated to 220ºC)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-653 Type K Miniature 3 Pin Plug $7.90 $7.30 $6.60 Add
524-655 Type K Miniature 3 Pin Socket $7.90 $7.30 $6.60 Add
524-657 Type T Miniature 3 Pin Plug $7.90 $7.30 $6.60 Add
524-659 Type T Miniature 3 Pin Socket $7.90 $7.30 $6.60 Add
524-661 Type J Miniature 3 Pin Plug $7.90 $7.30 $6.60 Add
524-663 Type J Miniature 3 Pin Socket $7.90 $7.30 $6.60 Add
524-665 Type N Miniature 3 Pin Plug $7.90 $7.30 $6.60 Add
524-667 Type N Miniature 3 Pin Socket $7.90 $7.30 $6.60 Add
524-669 Type RX/SX Miniature 3 Pin Plug $7.90 $7.30 $6.60 Add
524-671 Type RX/SX Miniature 3 Pin Socket $7.90 $7.30 $6.60 Add
733-130 Copper Miniature 3 Pin Plug $7.90 $7.30 $6.60 Add
733-132 Copper Miniature 3 Pin Socket $7.90 $7.30 $6.60 Add
724-780 Miniature Cable Grommet (0.5mm ID) $0.75 $0.70 $0.65 Add
724-782 Miniature Cable Grommet (1.0mm ID) $0.75 $0.70 $0.65 Add
724-784 Miniature Cable Grommet (1.5mm ID) $0.75 $0.70 $0.65 Add
724-786 Miniature Cable Grommet (3.0mm ID) $0.75 $0.70 $0.65 Add
724-790 Miniature Cable Clamp (One per connector) $3.00 $2.80 $2.60 Add
724-802 Miniature Silicone Rubber Boot (One per connector) $6.50 $5.90 $5.60 Add
