Miniature ‘Quick Connect’ Thermocouple Connectors

Miniature ‘Quick Connect’ Thermocouple Connectors view larger image

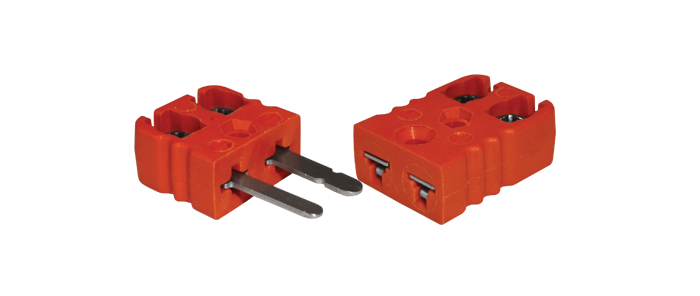

These ‘quick connect’ versions of our flat pin miniature connectors allow rapid connection of thermocouple sensors and extension or compensating cable to each other. Simply push in the wire and tighten the screw! The pins are polarised to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -50ºC and +210ºC.
  • Quick and easy ‘jab-in’ connection of thermocouple wires
  • Body: Thermoplastic compound rated -50ºC to +220ºC
  • Suitable for wire diameters up to 0.8mm

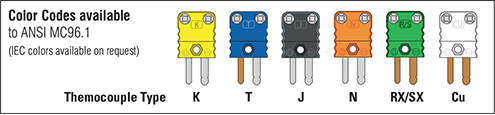

  • Color coded to ANSI MC96.1-1982
  • Dimensions: Plug 15x16x8mm (LxWxD) with 12mm long pins. Socket 21.5x16x8mm (LxWxD)
  • Manufactured by the TC Group
The following types are available:

Miniature ‘Quick Connect’ Thermocouple Connectors (220ºC)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-603 Type K Jab-in Miniature Plug $6.00 $5.60 $5.00 Add
524-605 Type K Jab-in Miniature Socket $6.00 $5.60 $5.00 Add
524-607 Type T Jab-in Miniature Plug $6.00 $5.60 $5.00 Add
524-609 Type T Jab-in Miniature Socket $6.00 $5.60 $5.00 Add
524-611 Type J Jab-in Miniature Plug $6.00 $5.60 $5.00 Add
524-613 Type J Jab-in Miniature Socket $6.00 $5.60 $5.00 Add
524-615 Type N Jab-in Miniature Plug $6.00 $5.60 $5.00 Add
524-617 Type N Jab-in Miniature Socket $6.00 $5.60 $5.00 Add
524-619 Type RX/SX Jab-in Miniature Plug $6.00 $5.60 $5.00 Add
524-621 Type RX/SX Jab-in Miniature Socket $6.00 $5.60 $5.00 Add
724-623 Copper Jab-in Miniature Plug $6.00 $5.60 $5.00 Add
724-625 Copper Jab-in Miniature Socket $6.00 $5.60 $5.00 Add
