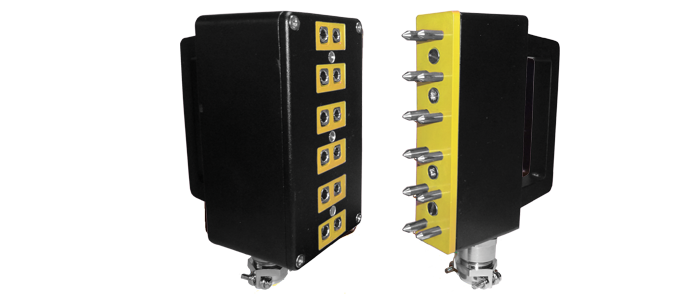

6-way Heavy Duty Thermocouple Connector System
These thermocouple connecting systems, comprise of six standard plugs or sockets mounted in a heavy duty steel housing. They are designed for quick interconnection, of thermocouple sensors in a wide variety of processes such as walk through sterilizers where the two halves of the connector are mated during sterilization. Alternatively any of our standard sized plugs or sockets can be used individually with one half of the system. The steel housing is epoxy painted and has an anodised aluminium handle for easy grip.
• Quick connection of thermocouple systems; colour coded to ANSI MC96.1-1982
• Temperature rating: 220°C
• PG13 cable entry allows connection of cables up to 15mm diameter
• Accepts wire size from 0.2mm to 2.0mm diameter
• Dimensions including handle:- Plug: 28mm wide x 93mm deep x 117mm high, Socket: 63mm wide x 94mm deep x 113mm high- Manufactured by the TC Group
The following types are available:
