High Temperature Standard Ceramic Thermocouple Connectors (650°C)

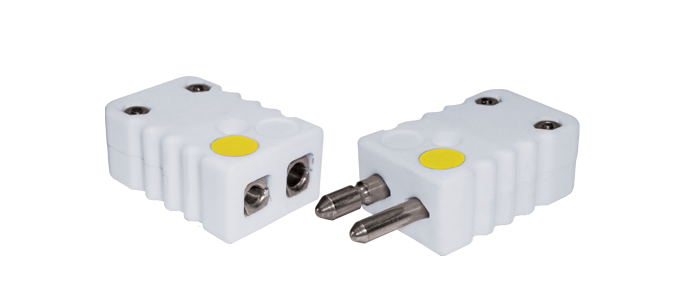

High Temperature Standard Ceramic Thermocouple Connectors (650°C) view larger image
These round pin high temperature standard connectors are ideal for connecting thermocouple sensors and extension cable to each other at high temperatures. The connector body is made from a high purity alumina, rated from -25°C to 650°C. The pins are polarised to avoid an incorrect connection and the ANSI colour code is observed through a colour dot on the connector body.
  • Body: High Purity Alumina rated -25°C to 650°C
  • Suitable for 0.2mm up to 2.0mm dia wire diameters
  • Color coded to ANSI MC96.1-1982. Type K - Yellow, Type T - Blue, Type J - Black, Type N - Orange and Type RX/SX - Green
  • Dimensions: Plug 38x25x16mm (LxWxD) Socket 38x25x16mm (LxWxD)
  • Cable grommets can only be used in conditions below 200°C
  • Manufactured by the TC Group
The following types are available:

Hi Temp Ceramic Standard Thermcouple Connectors

Order Code Description 1 - 9 10 - 24 25+ Buy
523-053 Type K Standard Ceramic Plug $25.00 $22.90 $20.90 Add
523-056 Type K Standard Ceramic Socket $25.00 $22.90 $20.90 Add
523-059 Type T Standard Ceramic Plug $25.00 $22.90 $20.90 Add
523-062 Type T Standard Ceramic Socket $25.00 $22.90 $20.90 Add
523-065 Type J Standard Ceramic Plug $25.00 $22.90 $20.90 Add
523-068 Type J Standard Ceramic Socket $25.00 $22.90 $20.90 Add
523-071 Type N Standard Ceramic Plug $28.00 $25.60 $23.50 Add
523-074 Type N Standard Ceramic Socket $28.00 $25.60 $23.50 Add
523-077 Type RX/SX Standard Ceramic Plug $25.00 $22.90 $20.90 Add
523-080 Type RX/SX Standard Ceramic Socket $25.00 $22.90 $20.90 Add
523-083 Type Cu Standard Ceramic Plug $25.00 $22.90 $20.90 Add
523-086 Type Cu Standard Ceramic Socket $25.00 $22.90 $20.90 Add
724-892 Standard Cable Clamp (One per connector) $3.10 $2.90 $2.70 Add
