Standard Thermocouple Connectors (rated to 220°C)

Standard Thermocouple Connectors (rated to 220°C) view larger image

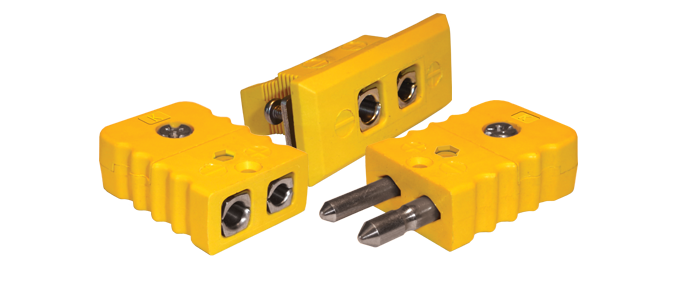

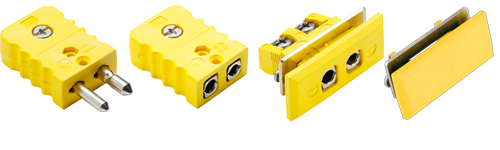

These round pin standard connectors are ideal for connecting thermocouple sensors and extension or compensating cable to each other. The pins are polarised to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -50°C and +220°C. In addition to offering a plug and socket, panel sockets and panel blanking sockets are also available. Panel blanking sockets are useful for when using a panel with less connectors than cut-outs, to avoid having an empty slot. Matching anodised aluminium connector panels can also be found in this section. Weatherproof silicone rubber boots are also available for added protection in moist environments as well as cable clamps.
  • Body: Thermoplastic compound rated -50ºC to +220ºC
  • Suitable for 0.2mm up to 2.0mm dia wire diameters
  • Color coded to ANSI MC96.1-1982. Type K - Yellow, Type T - Blue, Type J - Black, Type N - Orange, Type RX/SX - Green and Copper - White
  • Dimensions: Plug 35x25x12.5mm (LxWxD) with 15mm long round pins. Socket 35x25x12.5mm (LxWxD). Panel sockets are typically 27x25x12.5mm (LxWxD) and panel blanking sockets are 16x25x12.5mm (LxWxD) with front bezel 42x19mm supplied with bracket for attachment to panel
  • Cable clamps and weatherproof silicone rubber boots offered as options but cannot be used at the same time
  • Manufactured by the TC Group
The following types are available:

Type K Standard Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-321 Type K Standard Plug $9.30 $8.60 $7.90 Add
524-322 Type K Standard Socket $9.30 $8.60 $7.90 Add
524-324 Type K Standard Panel Socket $11.30 $10.30 $9.50 Add
524-325 Type K Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add

Type T Standard Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-327 Type T Standard Plug $9.30 $8.60 $7.90 Add
524-328 Type T Standard Socket $9.30 $8.60 $7.90 Add
524-330 Type T Standard Panel Socket $11.30 $10.30 $9.50 Add
524-331 Type T Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add

Type J Standard Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-333 Type J Standard Plug $9.30 $8.60 $7.90 Add
524-334 Type J Standard Socket $9.30 $8.60 $7.90 Add
524-336 Type J Standard Panel Socket $11.30 $10.30 $9.50 Add
524-337 Type J Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add

Type N Standard Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-339 Type N Standard Plug $9.30 $8.60 $7.90 Add
524-340 Type N Standard Socket $9.30 $8.60 $7.90 Add
524-342 Type N Standard Panel Socket $11.30 $10.30 $9.50 Add
524-343 Type N Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add

Type RX/SX Standard Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-345 Type RX/SX Standard Plug $9.30 $8.60 $7.90 Add
524-346 Type RX/SX Standard Socket $9.30 $8.60 $7.90 Add
524-348 Type RX/SX Standard Panel Socket $11.30 $10.30 $9.50 Add
524-349 Type RX/SX Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add

Copper Standard Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
724-350 Copper Standard Plug $9.30 $8.60 $7.90 Add
724-352 Copper Standard Socket $9.30 $8.60 $7.90 Add
724-354 Copper Standard Panel Socket $11.30 $10.30 $9.50 Add
524-355 Copper Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add

Accessories for Standard Thermocouple Connectors

Order Code Description 1 - 9 10 - 24 25+ Buy
724-880 Standard Cable Grommet (1.5mm ID) $1.00 $0.90 $0.80 Add
724-882 Standard Cable Grommet (2.5mm ID) $1.00 $0.90 $0.80 Add
724-884 Standard Cable Grommet (4.5mm ID) $1.00 $0.90 $0.80 Add
724-890 Standard Cable Clamp (One per connector) $3.10 $2.90 $2.70 Add
724-900 Standard Silicone Rubber Boot (One per connector) $6.50 $5.90 $5.60 Add
