Standard Connector Panels with Panel Mounting Holes and Numbered Channels

* connectors sold separately view larger image

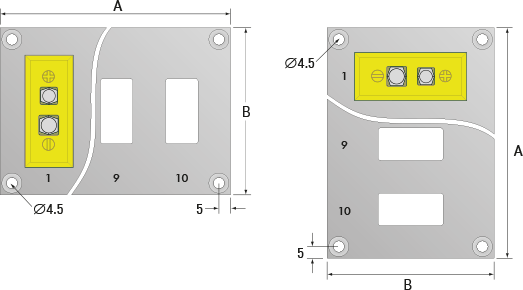

These connector panels are supplied without sockets (any of our standard panel sockets can be easily installed by the user if required) and are made from either anodised aluminium or stainless steel. Supplied with pre-drilled panel mounting holes and numbered either horizontally or vertically. Note: 16, 20 and 24 channel panels have two rows of connector cut-outs

Note: Panels are supplied without connectors fitted - please click here for suitable connectors from our extensive range.
The following types are available:

Standard Connector Panels with Panel Mounting Holes - Numbered Horizontally

Order Code Description 1 - 9 10 - 24 25+ Buy
728-200 Aluminium - 1 channel, 37 x 67mm (AxB) $31.50 $28.80 $26.30 Add
728-202 Aluminium - 2 channel, 62 x 67mm (AxB) $35.30 $32.30 $29.60 Add
728-204 Aluminium - 4 channel, 112 x 67mm (AxB) $42.00 $38.20 $35.10 Add
728-206 Aluminium - 6 channel, 162 x 67mm (AxB) $48.10 $43.90 $40.30 Add
728-208 Aluminium - 8 channel, 212 x 67mm (AxB) $56.00 $49.90 $45.60 Add
728-210 Aluminium - 10 channel, 262 x 67mm (AxB) $63.00 $58.00 $53.00 Add
728-212 Aluminium - 12 channel, 312 x 67mm (AxB) $71.00 $65.00 $59.00 Add
728-214 Aluminium - 16 channel, 212 x 113.5mm (AxB) $74.00 $68.00 $62.00 Add
728-216 Aluminium - 20 channel, 262 x 113.5mm (AxB) $78.00 $71.00 $65.00 Add
728-218 Aluminium - 24 channel, 312 x 113.5mm (AxB) $85.00 $78.00 $70.00 Add
524-324 Type K Standard Panel Socket $11.30 $10.30 $9.50 Add
524-325 Type K Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-330 Type T Standard Panel Socket $11.30 $10.30 $9.50 Add
524-331 Type T Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-336 Type J Standard Panel Socket $11.30 $10.30 $9.50 Add
524-337 Type J Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-342 Type N Standard Panel Socket $11.30 $10.30 $9.50 Add
524-343 Type N Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-348 Type RX/SX StandardPanel Socket $11.30 $10.30 $9.50 Add
524-349 Type RX/SX Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-354 Copper Standard Panel Socket $11.30 $10.30 $9.50 Add
524-355 Copper Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add

Standard Connector Panels with Panel Mounting Holes - Numbered Vertically

Order Code Description 1 - 9 10 - 24 25+ Buy
728-300 Aluminium - 1 channel, 37 x 67mm (AxB) $31.50 $28.80 $26.30 Add
728-302 Aluminium - 2 channel, 62 x 67mm (AxB) $35.30 $32.30 $29.60 Add
728-304 Aluminium - 4 channel, 112 x 67mm (AxB) $42.00 $38.20 $35.10 Add
728-306 Aluminium - 6 channel, 162 x 67mm (AxB) $48.10 $43.90 $40.30 Add
728-308 Aluminium - 8 channel, 212 x 67mm (AxB) $56.00 $49.90 $45.60 Add
728-309 Aluminium - 10 channel, 262 x 67mm (AxB) $63.00 $58.00 $53.00 Add
728-310 Aluminium - 12 channel, 312 x 67mm (AxB) $71.00 $65.00 $59.00 Add
728-312 Aluminium - 16 channel, 212 x 113.5mm (AxB) $74.00 $68.00 $62.00 Add
728-314 Aluminium - 20 channel, 262 x 113.5mm (AxB) $78.00 $71.00 $65.00 Add
728-316 Aluminium - 24 channel, 312 x 113.5mm (AxB) $85.00 $78.00 $70.00 Add
524-324 Type K Standard Panel Socket $11.30 $10.30 $9.50 Add
524-325 Type K Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-330 Type T Standard Panel Socket $11.30 $10.30 $9.50 Add
524-331 Type T Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-336 Type J Standard Panel Socket $11.30 $10.30 $9.50 Add
524-337 Type J Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-342 Type N Standard Panel Socket $11.30 $10.30 $9.50 Add
524-343 Type N Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-348 Type RX/SX StandardPanel Socket $11.30 $10.30 $9.50 Add
524-349 Type RX/SX Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
524-354 Copper Standard Panel Socket $11.30 $10.30 $9.50 Add
524-355 Copper Standard Panel Blanking Socket $6.90 $6.40 $5.80 Add
