Miniature Thermocouple Connectors (rated to 220°C)

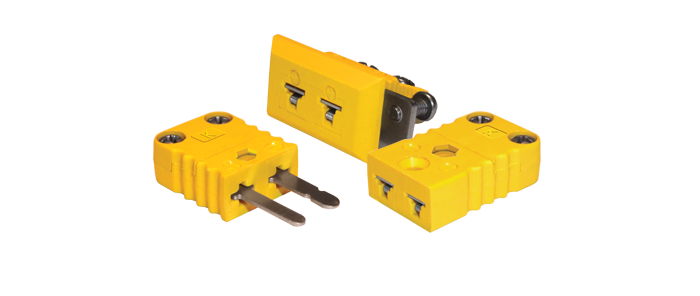

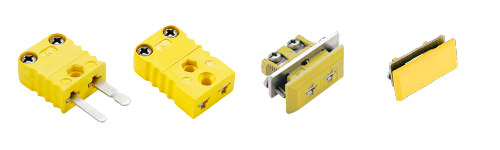

These flat pin miniature connectors are ideal for connecting thermocouple sensors and extension or compensating cable to each other. The pins are polarised to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -50°C and +220°C. In addition to offering a plug and socket, panel sockets and panel blanking sockets are also available. Panel blanking sockets are useful for when using a panel with less connectors than cut-outs, to avoid having an empty slot. Matching anodised aluminium connector panels can also be found in this section. Weatherproof silicone rubber boots for added protection in moist environments and cable clamps are also available.
  • Body: Thermoplastic compound rated -50ºC to +220ºC
  • Suitable for wire diameters up to 0.8mm
  • Color coded to ANSI MC96.1-1982. Type K - Yellow, Type T - Blue, Type J - Black, Type N - Orange, Type RX/SX - Green and Copper - White
  • Dimensions: Plug 19x16x8mm (LxWxD) with 12mm long pins Socket 26x16x8mm (LxWxD) Panel sockets are typically 19x16x8mm (LxWxD) and panel blanking sockets are 14.5x16x8mm (LxWxD) with front bezel 23.5x14mm supplied with bracket for attachment to panel
  • Cable clamps and weatherproof silicone rubber boots offered as options but cannot be used at the same time
  • Manufactured by the TC Group

Type K Miniature Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-102 Type K Miniature Plug $5.30 $5.00 $4.50 Add
524-104 Type K Miniature Socket $5.70 $5.20 $4.80 Add
524-106 Type K Miniature Panel Socket $6.50 $5.90 $5.60 Add
524-107 Type K Miniature Panel Blanking Socket $3.90 $3.60 $3.30 Add

Type T Miniature Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-108 Type T Miniature Plug $5.30 $5.00 $4.50 Add
524-110 Type T Miniature Socket $5.70 $5.20 $4.80 Add
524-112 Type T Miniature Panel Socket $6.50 $5.90 $5.60 Add
524-113 Type T Miniature Panel Blanking Socket $3.90 $3.60 $3.30 Add

Type J Miniature Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-114 Type J Miniature Plug $5.30 $5.00 $4.50 Add
524-116 Type J Miniature Socket $5.70 $5.20 $4.80 Add
524-118 Type J Miniature Panel Socket $6.50 $5.90 $5.60 Add
524-119 Type J Miniature Panel Blanking Socket $3.90 $3.60 $3.30 Add

Type N Miniature Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-120 Type N Miniature Plug $5.30 $5.00 $4.50 Add
524-122 Type N Miniature Socket $5.70 $5.20 $4.80 Add
524-124 Type N Miniature Panel Socket $6.50 $5.90 $5.60 Add
524-125 Type N Miniature Panel Blanking Socket $3.90 $3.60 $3.30 Add

Type RX/SX Miniature Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
524-126 Type RX/SX Miniature Plug $5.30 $5.00 $4.50 Add
524-128 Type RX/SX Miniature Socket $5.70 $5.20 $4.80 Add
524-130 Type RX/SX Miniature Panel Socket $6.50 $5.90 $5.60 Add
524-131 Type RX/SX Miniature Panel Blanking Socket $3.90 $3.60 $3.30 Add

Type B Miniature Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
724-190 Type B Miniature Plug $5.30 $5.00 $4.50 Add
724-192 Type B Miniature Socket $5.70 $5.20 $4.80 Add
724-194 Type B Miniature Panel Socket $6.50 $5.90 $5.60 Add
724-196 Type B Miniature Panel Blanking Socket $3.90 $3.60 $3.30 Add

Copper Miniature Thermocouple Connectors (rated to 220°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
724-132 Copper Miniature Plug $5.30 $5.00 $4.50 Add
724-134 Copper Miniature Socket $5.70 $5.20 $4.80 Add
724-136 Copper Miniature Panel Socket $6.50 $5.90 $5.60 Add
524-135 Copper Miniature Panel Blanking Socket $3.90 $3.60 $3.30 Add

Accessories for Miniature Thermocouple Connectors

Order Code Description 1 - 9 10 - 24 25+ Buy
724-780 Miniature Cable Grommet (0.5mm ID) $0.75 $0.70 $0.65 Add
724-782 Miniature Cable Grommet (1.0mm ID) $0.75 $0.70 $0.65 Add
724-784 Miniature Cable Grommet (1.5mm ID) $0.75 $0.70 $0.65 Add
724-786 Miniature Cable Grommet (3.0mm ID) $0.75 $0.70 $0.65 Add
724-790 Miniature Cable Clamp (One per connector) $3.00 $2.80 $2.60 Add
724-800 Miniature Silicone Rubber Boot (One per connector) $6.50 $5.90 $5.60 Add
