Non Armoured 7/0.2mm Multipair Type K Thermocouple Extension and Compensating Cable (80°C)
We supply multipair 7/0.2mm dia cable in 10, 25, 50, 100 or 200 metre lengths in thermocouple cable types KX and KCB. ach conductor is insulated in flame retardant PVC, pairs are then twisted, screened with aluminium Mylar® tape, bunched together, overall screened with aluminium Mylar® tape and flame retardant PVC sheathed overall. All conductors used (except for compensating cable) are made from the relevant thermocouple material and meet ANSI MC96.1 up to the maximum operating temperature of the insulation material. The insulation material is colour coded to ANSI MC96.1 as shown below.
Available in either 2, 6, or 12 pairs

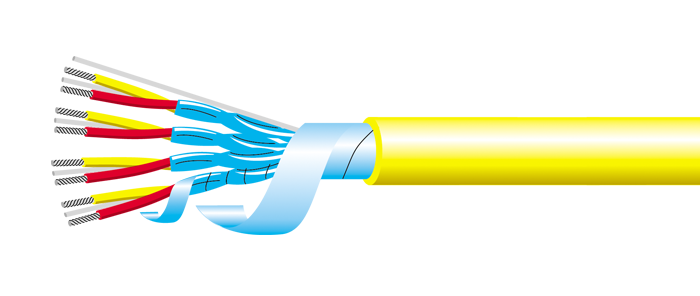

Multipair 7/0.2mm dia FR PVC insulated, twisted pairs, screened with aluminium Mylar® tape, pairs bunched, screened with aluminium Mylar® tape, FR PVC overall sheathed construction
Flame retardant PVC rated to 80°C
Colour coded:-
Type KX: Yellow outer sheath, yellow positive wire and red negative wire
Type KCB (supplied in IEC colours): green outer sheath, green positive core
and white negative core
Easy connection to other equipment via our range of connector systems or via the rear terminals on our range of indicators, controllers and programmers
The following types are available:
Order Code
Description
1 - 4
5 - 9
10+
Buy
422-010
10 metre reel - 2 pair
$113.00
$103.00
$95.00
Add
422-012
25 metre reel - 2 pair
$218.00
$198.00
$183.00
Add
422-014
50 metre reel - 2 pair
$377.00
$345.00
$315.00
Add
422-016
100 metre reel - 2 pair
$645.00
$589.00
$539.00
Add
422-018
200 metre reel - 2 pair
$1,223.00
$1,120.00
$1,021.00
Add
422-020
10 metre reel - 6 pair
$267.00
$243.00
$222.00
Add
422-022
25 metre reel - 6 pair
$564.00
$514.00
$471.00
Add
422-024
50 metre reel - 6 pair
$991.00
$905.00
$828.00
Add
422-026
100 metre reel - 6 pair
$1,713.00
$1,562.00
$1,430.00
Add
422-028
200 metre reel - 6 pair
$3,255.00
$2,965.00
$2,714.00
Add
422-030
10 metre reel - 12 pair
$495.00
$452.00
$414.00
Add
422-032
25 metre reel - 12 pair
$1,078.00
$983.00
$899.00
Add
422-034
50 metre reel - 12 pair
$1,845.00
$1,681.00
$1,539.00
Add
422-036
100 metre reel - 12 pair
$3,195.00
$2,913.00
$2,666.00
Add
422-038
200 metre reel - 12 pair
$6,069.00
$5,536.00
$5,064.00
Add
Order Code
Description
1 - 4
5 - 9
10+
Buy
422-080
10 metre reel - 2 pair
$97.00
$88.00
$81.00
Add
422-082
25 metre reel - 2 pair
$201.00
$185.00
$168.00
Add
422-084
50 metre reel - 2 pair
$343.00
$312.00
$286.00
Add
422-086
100 metre reel - 2 pair
$593.00
$542.00
$496.00
Add
422-088
200 metre reel - 2 pair
$1,126.00
$1,028.00
$941.00
Add
422-090
10 metre reel - 6 pair
$218.00
$198.00
$183.00
Add
422-092
25 metre reel - 6 pair
$474.00
$432.00
$394.00
Add
422-094
50 metre reel - 6 pair
$806.00
$735.00
$673.00
Add
422-096
100 metre reel - 6 pair
$1,397.00
$1,274.00
$1,165.00
Add
422-098
200 metre reel - 6 pair
$2,653.00
$2,419.00
$2,212.00
Add
422-100
10 metre reel - 12 pair
$388.00
$355.00
$324.00
Add
422-102
25 metre reel - 12 pair
$842.00
$768.00
$702.00
Add
422-104
50 metre reel - 12 pair
$1,440.00
$1,312.00
$1,200.00
Add
422-106
100 metre reel - 12 pair
$2,491.00
$2,272.00
$2,080.00
Add
422-108
200 metre reel - 12 pair
$4,732.00
$4,314.00
$3,950.00
Add
