Fibreglass Insulated Multipair Thermocouple Cable (480°C)

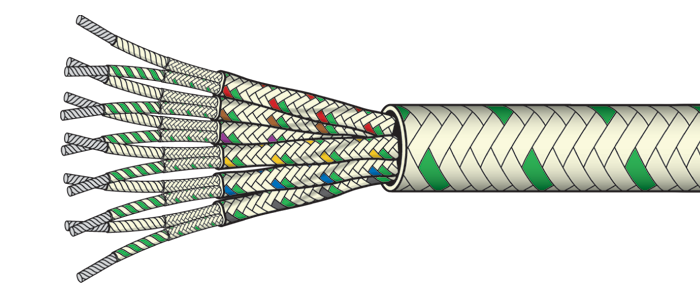

This range of fibreglass insulated multipair thermocouple cable is available as a 14/0.2mm dia cable in 25, 50, 100 or 200 metre lengths in either thermocouple cable types KX, JX and RCA/SCA. Each conductor is double glass fibre lapped, glass fibre braided and varnished. Pairs twisted, glass fibre braided and varnished, bunched, glass fibre braided and varnished. This cable is available with and without an overall stainless steel wire braid. All conductors used (except for compensating cable) are made from the relevant thermocouple material and meet BS EN 60584.1 and BS EN 60584.2 Class 2 up to the maximum operating temperature of the insulation material. The insulation material is colour coded to BS4937 Pt30 as shown below. Fibreglass insulated cable is ideal for higher temperature applications up to 480°C and the rugged construction of the stainless steel braided cable makes it ideal for heavy industrial applications such as in brick kilns and in the glass industry.
- Available in either 2, 3 or 6 pairs
- Fibreglass insulated
- OverallStainless Steel braid available
- Temperature rating: 480°C
- Colour coded:-
Type KX: Green outer sheath, green positive core and white negative core
Type JX: Black outer sheath, black positive core and white negative core
Type RCA/SCA: Orange outer sheath, orange positive core and white negative core
- Available in a variety of lengths
- Easy connection to other equipment via our range of connector systems or via the rear terminals on our range of indicators, controllers and programmers
The following types are available:
| Order Code |
Description |
1 - 4
|
5 - 9
|
10+
|
Buy |
| 823-303 |
25 metre reel - 2 pair |
$486.00 |
$442.00 |
$405.00 |
Add
|
| 823-306 |
50 metre reel - 2 pair |
$845.00 |
$770.00 |
$704.00 |
Add
|
| 823-309 |
100 metre reel - 2 pair |
$1,426.00 |
$1,301.00 |
$1,190.00 |
Add
|
| 823-312 |
200 metre reel - 2 pair |
$2,708.00 |
$2,469.00 |
$2,260.00 |
Add
|
| 823-315 |
25 metre reel - 3 pair |
$725.00 |
$662.00 |
$606.00 |
Add
|
| 823-318 |
50 metre reel - 3 pair |
$1,258.00 |
$1,145.00 |
$1,050.00 |
Add
|
| 823-321 |
100 metre reel - 3 pair |
$2,140.00 |
$1,950.00 |
$1,786.00 |
Add
|
| 823-324 |
200 metre reel - 3 pair |
$4,066.00 |
$3,704.00 |
$3,390.00 |
Add
|
| 823-327 |
25 metre reel - 6 pair |
$1,426.00 |
$1,301.00 |
$1,190.00 |
Add
|
| 823-330 |
50 metre reel - 6 pair |
$1,993.00 |
$1,816.00 |
$1,663.00 |
Add
|
| 823-333 |
100 metre reel - 6 pair |
$3,405.00 |
$3,103.00 |
$2,839.00 |
Add
|
| 823-336 |
200 metre reel - 6 pair |
$6,464.00 |
$5,894.00 |
$5,394.00 |
Add
|
| Order Code |
Description |
1 - 4
|
5 - 9
|
10+
|
Buy |
| 823-351 |
25 metre reel - 2 pair |
$439.00 |
$401.00 |
$366.00 |
Add
|
| 823-354 |
50 metre reel - 2 pair |
$760.00 |
$692.00 |
$634.00 |
Add
|
| 823-357 |
100 metre reel - 2 pair |
$1,287.00 |
$1,174.00 |
$1,074.00 |
Add
|
| 823-360 |
200 metre reel - 2 pair |
$2,442.00 |
$2,229.00 |
$2,039.00 |
Add
|
| 823-363 |
25 metre reel - 3 pair |
$656.00 |
$598.00 |
$547.00 |
Add
|
| 823-366 |
50 metre reel - 3 pair |
$1,131.00 |
$1,032.00 |
$946.00 |
Add
|
| 823-369 |
100 metre reel - 3 pair |
$1,928.00 |
$1,759.00 |
$1,610.00 |
Add
|
| 823-372 |
200 metre reel - 3 pair |
$3,662.00 |
$3,340.00 |
$3,055.00 |
Add
|
| 823-375 |
25 metre reel - 6 pair |
$1,287.00 |
$1,174.00 |
$1,074.00 |
Add
|
| 823-378 |
50 metre reel - 6 pair |
$2,241.00 |
$2,044.00 |
$1,870.00 |
Add
|
| 823-381 |
100 metre reel - 6 pair |
$3,832.00 |
$3,493.00 |
$3,197.00 |
Add
|
| 823-384 |
200 metre reel - 6 pair |
$7,281.00 |
$6,637.00 |
$6,073.00 |
Add
|
| Order Code |
Description |
1 - 4
|
5 - 9
|
10+
|
Buy |
| 823-447 |
25 metre reel - 2 pair |
$439.00 |
$401.00 |
$366.00 |
Add
|
| 823-450 |
50 metre reel - 2 pair |
$760.00 |
$692.00 |
$634.00 |
Add
|
| 823-453 |
100 metre reel - 2 pair |
$1,287.00 |
$1,174.00 |
$1,074.00 |
Add
|
| 823-456 |
200 metre reel - 2 pair |
$2,442.00 |
$2,229.00 |
$2,039.00 |
Add
|
| 823-459 |
25 metre reel - 3 pair |
$656.00 |
$598.00 |
$547.00 |
Add
|
| 823-462 |
50 metre reel - 3 pair |
$1,131.00 |
$1,032.00 |
$946.00 |
Add
|
| 823-465 |
100 metre reel - 3 pair |
$1,928.00 |
$1,759.00 |
$1,610.00 |
Add
|
| 823-468 |
200 metre reel - 3 pair |
$3,662.00 |
$3,340.00 |
$3,055.00 |
Add
|
| 823-471 |
25 metre reel - 6 pair |
$1,287.00 |
$1,174.00 |
$1,074.00 |
Add
|
| 823-474 |
50 metre reel - 6 pair |
$2,241.00 |
$2,044.00 |
$1,870.00 |
Add
|
| 823-477 |
100 metre reel - 6 pair |
$3,832.00 |
$3,493.00 |
$3,197.00 |
Add
|
| 823-480 |
200 metre reel - 6 pair |
$7,281.00 |
$6,637.00 |
$6,073.00 |
Add
|
