PFA Insulated Multipair Thermocouple Cable (250°C)

PFA Insulated Multipair Thermocouple Cable (250°C) view larger image

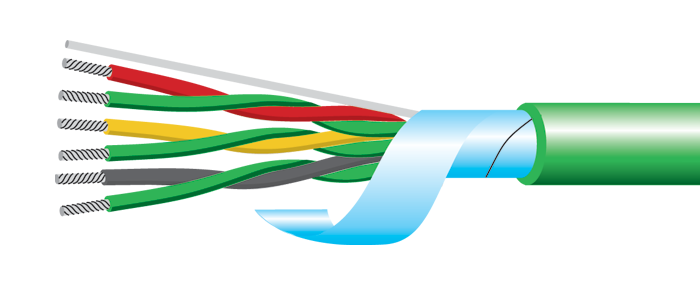

This range of PFA insulated multipair thermocouple cables is available as a 7/0.2mm dia cable in 25, 50, or 100 metre lengths in either thermocouple cable types KX, TX, JX and NX. Each conductor is insulated in PFA®, pairs are then twisted, bunched together, overall screened with aluminium Mylar® tape and PFA® sheathed overall. All conductors used (except for compensating cable) are made from the relevant thermocouple material and meet BS EN 60584.1 and BS EN 60584.2 Class 2 up to the maximum operating temperature of the insulation material. PFA® insulated cable is ideal for higher temperature applications up to 250°C or for use at cryogenic temperatures down to -75°C and will withstand attack from virtually all known chemicals, oils and fluids. The insulation material is colour coded to IEC 60584-3.
  • Available in either 2, 3, 4, 6, 8 or 12 pairs
  • PFA insulated
  • Temperature range: -75°C to +250°C
  • Resistant to chemicals, oils and fluids
  • Colour coded:- Negative legs colour coded for pair differentiation, please contact TC Direct for details if required
  • Available in a variety of lengths
  • Easy connection to other equipment via our range of connector systems or via the rear terminals on our range of indicators, controllers and programmers
The following types are available:

Type KX - PFA Insulated Multipair Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
823-003 25 metre reel - 2 pair $482.00 $439.00 $402.00 Add
823-006 50 metre reel - 2 pair $923.00 $842.00 $771.00 Add
823-009 100 metre reel - 2 pair $1,749.00 $1,594.00 $1,459.00 Add
823-012 200 metre reel - 2 pair $3,320.00 $3,028.00 $2,772.00 Add
823-015 25 metre reel - 3 pair $632.00 $576.00 $527.00 Add
823-018 50 metre reel - 3 pair $1,216.00 $1,108.00 $1,015.00 Add
823-021 100 metre reel - 3 pair $2,260.00 $2,060.00 $1,886.00 Add
823-024 200 metre reel - 3 pair $4,290.00 $3,911.00 $3,581.00 Add
823-030 25 metre reel - 4 pair $824.00 $750.00 $686.00 Add
823-033 50 metre reel - 4 pair $1,589.00 $1,450.00 $1,327.00 Add
823-036 100 metre reel - 4 pair $2,925.00 $2,666.00 $2,439.00 Add
823-039 200 metre reel - 4 pair $5,555.00 $5,064.00 $4,634.00 Add
823-042 25 metre reel - 6 pair $981.00 $895.00 $818.00 Add
823-045 50 metre reel - 6 pair $1,888.00 $1,723.00 $1,577.00 Add
823-048 100 metre reel - 6 pair $3,485.00 $3,178.00 $2,908.00 Add
823-051 200 metre reel - 6 pair $6,621.00 $6,035.00 $5,523.00 Add
823-053 25 metre reel - 8 pair $1,232.00 $1,123.00 $1,028.00 Add
823-054 50 metre reel - 8 pair $2,378.00 $2,167.00 $1,984.00 Add
823-055 100 metre reel - 8 pair $4,415.00 $4,025.00 $3,683.00 Add
823-056 200 metre reel - 8 pair $8,386.00 $7,645.00 $6,998.00 Add
823-058 25 metre reel - 12 pair $1,808.00 $1,649.00 $1,509.00 Add
823-059 50 metre reel - 12 pair $3,492.00 $3,183.00 $2,915.00 Add
823-060 100 metre reel - 12 pair $6,480.00 $5,907.00 $5,405.00 Add
823-061 200 metre reel - 12 pair $12,311.00 $11,221.00 $10,269.00 Add

Type TX - PFA Insulated Multipair Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
823-066 25 metre reel - 2 pair $318.00 $290.00 $266.00 Add
823-069 50 metre reel - 2 pair $611.00 $557.00 $510.00 Add
823-072 100 metre reel - 2 pair $1,132.00 $1,032.00 $944.00 Add
823-073 200 metre reel - 2 pair $2,148.00 $1,960.00 $1,793.00 Add
823-075 25 metre reel - 3 pair $482.00 $439.00 $402.00 Add
823-078 50 metre reel - 3 pair $927.00 $845.00 $774.00 Add
823-081 100 metre reel - 3 pair $1,725.00 $1,571.00 $1,438.00 Add
823-082 200 metre reel - 3 pair $3,273.00 $2,982.00 $2,729.00 Add
823-084 25 metre reel - 4 pair $661.00 $603.00 $552.00 Add
823-087 50 metre reel - 4 pair $1,276.00 $1,163.00 $1,065.00 Add
823-090 100 metre reel - 4 pair $2,365.00 $2,155.00 $1,973.00 Add
823-091 200 metre reel - 4 pair $4,491.00 $4,094.00 $3,749.00 Add
823-093 25 metre reel - 6 pair $960.00 $876.00 $801.00 Add
823-096 50 metre reel - 6 pair $1,511.00 $1,377.00 $1,262.00 Add
823-099 100 metre reel - 6 pair $2,788.00 $2,541.00 $2,327.00 Add
823-100 200 metre reel - 6 pair $5,296.00 $4,828.00 $4,420.00 Add

Type JX - PFA Insulated Multipair Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
823-111 25 metre reel - 2 pair $318.00 $290.00 $266.00 Add
823-114 50 metre reel - 2 pair $611.00 $557.00 $510.00 Add
823-117 100 metre reel - 2 pair $1,132.00 $1,032.00 $944.00 Add
823-118 200 metre reel - 2 pair $2,148.00 $1,960.00 $1,793.00 Add
823-120 25 metre reel - 3 pair $482.00 $439.00 $402.00 Add
823-123 50 metre reel - 3 pair $927.00 $845.00 $774.00 Add
823-126 100 metre reel - 3 pair $1,725.00 $1,571.00 $1,438.00 Add
823-127 200 metre reel - 3 pair $3,273.00 $2,982.00 $2,729.00 Add
823-129 25 metre reel - 4 pair $661.00 $603.00 $552.00 Add
823-132 50 metre reel - 4 pair $1,276.00 $1,163.00 $1,065.00 Add
823-135 100 metre reel - 4 pair $2,365.00 $2,155.00 $1,973.00 Add
823-136 200 metre reel - 4 pair $4,491.00 $4,094.00 $3,749.00 Add
823-138 25 metre reel - 6 pair $960.00 $876.00 $801.00 Add
823-141 50 metre reel - 6 pair $1,511.00 $1,377.00 $1,262.00 Add
823-144 100 metre reel - 6 pair $2,788.00 $2,541.00 $2,327.00 Add
823-145 200 metre reel - 6 pair $5,296.00 $4,828.00 $4,420.00 Add

Type NX - PFA Insulated Multipair Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
823-156 25 metre reel - 2 pair $563.00 $513.00 $470.00 Add
823-159 50 metre reel - 2 pair $1,087.00 $992.00 $907.00 Add
823-162 100 metre reel - 2 pair $2,020.00 $1,842.00 $1,685.00 Add
823-163 200 metre reel - 2 pair $3,835.00 $3,497.00 $3,201.00 Add
823-165 25 metre reel - 3 pair $730.00 $664.00 $608.00 Add
823-168 50 metre reel - 3 pair $1,407.00 $1,283.00 $1,174.00 Add
823-171 100 metre reel - 3 pair $2,607.00 $2,378.00 $2,178.00 Add
823-172 200 metre reel - 3 pair $4,953.00 $4,515.00 $4,135.00 Add
823-174 25 metre reel - 4 pair $896.00 $817.00 $749.00 Add
823-177 50 metre reel - 4 pair $1,725.00 $1,571.00 $1,438.00 Add
823-180 100 metre reel - 4 pair $3,197.00 $2,914.00 $2,667.00 Add
823-181 200 metre reel - 4 pair $6,070.00 $5,535.00 $5,066.00 Add
823-183 25 metre reel - 6 pair $1,208.00 $1,102.00 $1,008.00 Add
823-186 50 metre reel - 6 pair $2,328.00 $2,123.00 $1,943.00 Add
823-189 100 metre reel - 6 pair $4,317.00 $3,934.00 $3,601.00 Add
823-190 200 metre reel - 6 pair $8,201.00 $7,473.00 $6,842.00 Add
