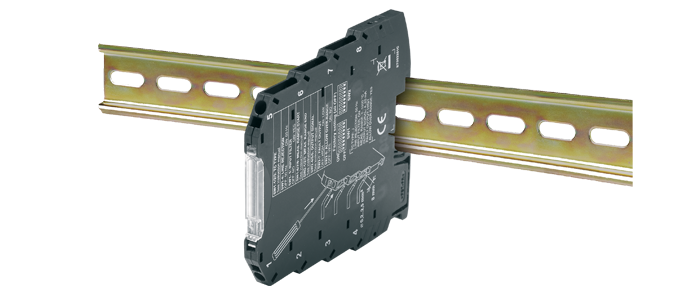

Pt100 Transmitter - Slim-line, DIN Rail Mounted

Our new range of slim-line microprocessor based DIN rail mounted transmitters are high accuracy yet low cost and are ideal for a variety of industrial applications. The body is a tiny 6.2mm thick - a huge space saving compared to most other DIN rail models. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications via a configuration kit consisting of: an easy to use software package on a CD Rom, connection leads for attaching the transmitter to the USB port of your PC as well as instructions.
  • For easy connection to 2, 3 or 4 wire Pt100 sensors
  • Fixed ranges for quick connection to your system
  • Temperature Linearised
  • Provides a 4-20mA output signal
  • For DIN rail mounting
  • Tiny Dimensions! (6.2mm x 93.1mm x 102.5mm body)
  • CE marked
Specifications:
Power Supply: 7-30 V DC
Operating Temperature Range: -20°C / +65°C
Error Transmission: 0.1% (min 0.1°C)
Response Time (10..90%): <220 ms
Burnout: Factory set to Upscale, programmable with TXPROG software
Connection: Push Fit Terminals for quick connection

Slim-line Pt100 DIN Rail Mounted Transmitter - Fixed Range

Order Code Description 1 - 9 10 - 24 25+ Buy
748-403 3-wire, Pt100 -25°C/ +50°C $195.00 $178.00 $164.00 Add
748-406 3-wire, Pt100 0°C/ +100°C $195.00 $178.00 $164.00 Add
748-409 3-wire, Pt100 0°C/ +150°C $195.00 $178.00 $164.00 Add
748-412 3-wire, Pt100 0°C/ +200°C $195.00 $178.00 $164.00 Add
748-415 3-wire, Pt100 0°C/ +300°C $195.00 $178.00 $164.00 Add
748-418 3-wire, Pt100 0°C/ +400°C $195.00 $178.00 $164.00 Add

Slim-line Pt100 DIN Rail Mounted Transmitter - Adjustable

Order Code Description 1 - 9 10 - 24 25+ Buy
748-421 Slim-line Adjustable DIN Rail Transmitter $195.00 $178.00 $164.00 Add
747-465 TX-PROG Configuration Software Kit $193.00 $176.00 $162.00 Add
