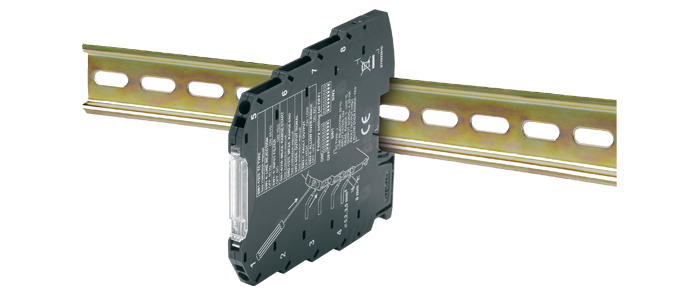

Fully Isolated Thermocouple and Pt100 Transmitter - Slim-line, DIN Rail Mounted

Fully Isolated Thermocouple and Pt100 Transmitter - Slim-line, DIN Rail Mounted view larger image
Our new range of slim-line microprocessor based, fully isolated DIN rail mounted transmitters are high accuracy yet low cost and are ideal for a variety of industrial applications. The body is a tiny 6.2mm thick - a huge space saving compared to most other DIN rail models. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications via a configuration kit consisting of: an easy to use software package on a CD Rom, connection leads for attaching the transmitter to the USB port of your PC as well as instructions.
  • Available pre-configured in a variety of ranges for thermocouple types K, T or J or RTD Pt100 or alternatively not ranged for customer configuration for K, T, J, N, E, R, S & B and RTD Pt100/Pt1000
  • Fully isolated and Temperature Linearised
  • Provides a 4-20mA output signal
  • For DIN rail mounting
  • Tiny Dimensions! (6.2mm x 93.1mm x 102.5mm body)
  • CE marked
Specifications:
Fully Isolated & Temperature Linearised
Power Supply: 7-30 V DC
Operating Temperature Range: -20°C / +65°C
Error Transmission: 0.1% (Measurement) or (min.) 0.1°C (Pt100) / 0.5°C (Thermocouple)
Response Time (10..90%): <620 ms
Burnout: Factory set to Upscale, programmable with TXPROG software
Connection: Push Fit Terminals for quick connection
RFI protected
The following types are available:

Slim-line DIN Rail Mounted Transmitter - Fixed Range

Order Code Description 1 - 9 10 - 24 25+ Buy
748-303 Type K -25°C/ +50°C $224.00 $205.00 $188.00 Add
748-306 Type K 0°C/ +200°C $224.00 $205.00 $188.00 Add
748-309 Type K 0°C/ +300°C $224.00 $205.00 $188.00 Add
748-312 Type K 0°C/ +600°C $224.00 $205.00 $188.00 Add
748-315 Type K 0°C/ +900°C $224.00 $205.00 $188.00 Add
748-318 Type K 0°C/ +1200°C $224.00 $205.00 $188.00 Add
748-321 Type T -25°C/ +100°C $224.00 $205.00 $188.00 Add
748-324 Type T 0°C/ +300°C $224.00 $205.00 $188.00 Add
748-327 Type T 0°C/ +400°C $224.00 $205.00 $188.00 Add
748-330 Type J 0°C/ +300°C $224.00 $205.00 $188.00 Add
748-333 Type J 0°C/ +600°C $224.00 $205.00 $188.00 Add
748-336 Type J 0°C/ +800°C $224.00 $205.00 $188.00 Add
748-339 3-wire, Pt100 -25°C/ +50°C $224.00 $205.00 $188.00 Add
748-342 3-wire, Pt100 0°C/ +100°C $224.00 $205.00 $188.00 Add
748-345 3-wire, Pt100 0°C/ +200°C $224.00 $205.00 $188.00 Add
748-348 3-wire, Pt100 0°C/ +300°C $224.00 $205.00 $188.00 Add
748-351 3-wire, Pt100 0°C/ +400°C $224.00 $205.00 $188.00 Add

Slim-line DIN Rail Mounted Transmitter - Adjustable

Order Code Description 1 - 9 10 - 24 25+ Buy
748-354 Slim-line Adjustable DIN Rail Transmitter $224.00 $205.00 $188.00 Add
747-465 TX-PROG Configuration Software Kit $193.00 $176.00 $162.00 Add
