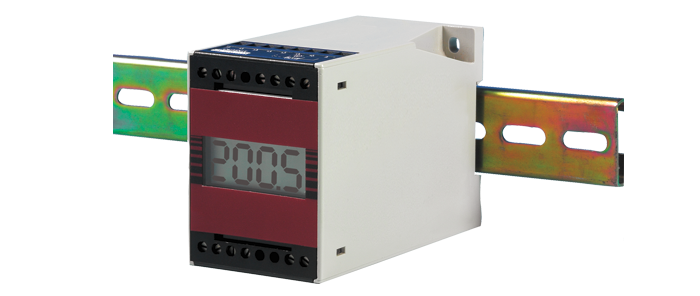

Isolated Thermocouple and Pt100 DIN Rail Mounted Transmitter with Display
This new range of microprocessor based DIN rail mounted transmitters with integral display has an isolated 24V DC power supply to prevent ground loops and associated problems as well as full isolation between input and output. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications with a configuration kit consisting of: an easy to use software package, connection leads and instructions.
Available pre configured in a variety of ranges for thermocouple types
K, T or J and RTD Pt100 or alternatively not ranged for customer configuration
Temperature Linearised
Provides a 0-10V DC, 0-1V DC, 4-20mA or 0-20mA output signal
For DIN rail mounting
CE marked
The following types are available:
Order Code
Description
1 - 4
5 - 9
10+
Buy
748-203
Type K -25°C / +50°C
$1,051.00
$958.00
$878.00
Add
748-209
Type K 0°C / +200°C
$1,051.00
$958.00
$878.00
Add
748-212
Type K 0°C / +300°C
$1,051.00
$958.00
$878.00
Add
748-215
Type K 0°C / +600°C
$1,051.00
$958.00
$878.00
Add
748-218
Type K 0°C / +900°C
$1,051.00
$958.00
$878.00
Add
748-221
Type K 0°C / +1200°C
$1,051.00
$958.00
$878.00
Add
748-224
Type T -25°C / +50°C
$1,051.00
$958.00
$878.00
Add
748-227
Type T 0°C / +100°C
$1,051.00
$958.00
$878.00
Add
748-230
Type T 0°C / +300°C
$1,051.00
$958.00
$878.00
Add
748-233
Type T 0°C / +400°C
$1,051.00
$958.00
$878.00
Add
748-236
Type J 0°C / +100°C
$1,051.00
$958.00
$878.00
Add
748-239
Type J 0°C / +300°C
$1,051.00
$958.00
$878.00
Add
748-242
Type J 0°C / +600°C
$1,051.00
$958.00
$878.00
Add
748-245
Type J 0°C / +800°C
$1,051.00
$958.00
$878.00
Add
748-248
3-wire, Pt100 -25°C / +50°C
$1,051.00
$958.00
$878.00
Add
748-251
3-wire, Pt100 0°C / +100°C
$1,051.00
$958.00
$878.00
Add
748-254
3-wire, Pt100 0°C / +150°C
$1,051.00
$958.00
$878.00
Add
748-257
3-wire, Pt100 0°C / +200°C
$1,051.00
$958.00
$878.00
Add
748-260
3-wire, Pt100 0°C / +300°C
$1,051.00
$958.00
$878.00
Add
748-263
3-wire, Pt100 0°C / +400°C
$1,051.00
$958.00
$878.00
Add
