Fixed Range Thermocouple or Pt100 DIN Rail Mounted Transmitter

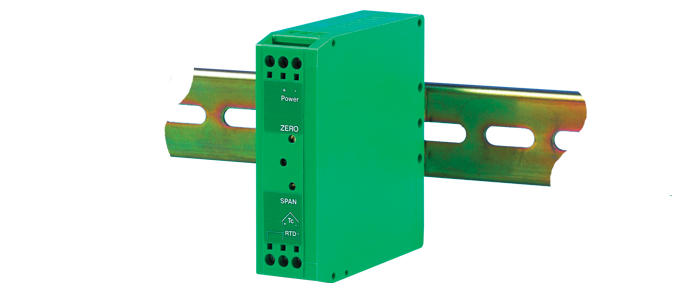

Fixed Range Thermocouple or Pt100 DIN Rail Mounted Transmitter view larger image
Our fixed range of DIN rail mounted transmitters are available in a variety of ranges for Type K, T or J thermocouples or alternatively for Pt100 sensors. They are high accuracy yet low cost and are ideal for a variety of industrial applications.
  • Available for either Types K, T or J Thermocouple or Pt100 sensors in a variety of fixed ranges
  • Provides a 4-20mA output signal
  • For DIN rail mounting
  • CE marked

Specifications

  • Power supply: 14-40V DC
  • Operating temperature range: -20ºC/+80ºC
  • Thermocouple type: Cold junction drift: 0.03ºC/ºC, Millivolt linearised
  • Pt100 type: Linearisation 0.1%, Maximum sensor line resistance 250 ohms, Sensor lead effect 0.03ºC/ohm
  • Burnout: Upscale (max 35mA)
  • Power supply effect: ±0.002%/V
  • Dimensions: 79mm high x 22.5mm wide x 85.5mm deep
The following types are available:

DIN Rail Mounted Thermocouple Transmitter - Fixed Range

Order Code Description 1 - 4 5 - 9 10+ Buy
747-600 Type K -25°C/+150°C $189.00 $174.00 $161.00 Add
747-604 Type K 0°C/+200°C $189.00 $174.00 $161.00 Add
747-608 Type K 0°C/+300°C $189.00 $174.00 $161.00 Add
747-612 Type K 0°C/+600°C $189.00 $174.00 $161.00 Add
747-616 Type K 0°C/+900°C $189.00 $174.00 $161.00 Add
747-620 Type K 0°C/+1200°C $189.00 $174.00 $161.00 Add
747-624 Type T 0°C/+150°C $189.00 $174.00 $161.00 Add
747-628 Type T 0°C/+200°C $189.00 $174.00 $161.00 Add
747-632 Type T 0°C/+400°C $189.00 $174.00 $161.00 Add
747-636 Type J 0°C/+200°C $189.00 $174.00 $161.00 Add
747-640 Type J 0°C/+400°C $189.00 $174.00 $161.00 Add
747-644 Type J 0°C/+800°C $189.00 $174.00 $161.00 Add

DIN Rail Mounted Pt100 Transmitter - Fixed Range

Order Code Description 1 - 4 5 - 9 10+ Buy
747-648 3-wire, Pt100 -25°C/+100°C $189.00 $174.00 $161.00 Add
747-652 3-wire, Pt100 0°C/+100°C $189.00 $174.00 $161.00 Add
747-656 3-wire, Pt100 0°C/+150°C $189.00 $174.00 $161.00 Add
747-660 3-wire, Pt100 0°C/+200°C $189.00 $174.00 $161.00 Add
747-664 3-wire, Pt100 0°C/+250°C $189.00 $174.00 $161.00 Add
747-668 3-wire, Pt100 0°C/+300°C $189.00 $174.00 $161.00 Add
