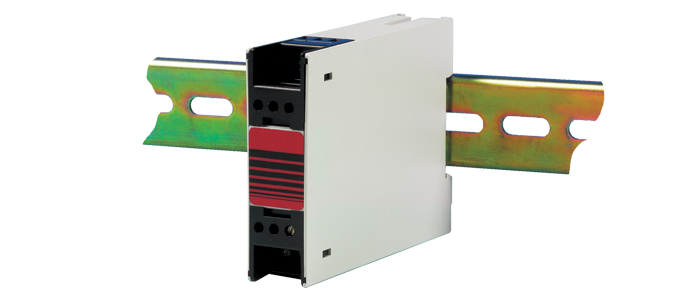

Microprocessor Based Thermocouple and Pt100 DIN Rail Mounted Transmitter

Microprocessor Based Thermocouple and Pt100 DIN Rail Mounted Transmitter view larger image
Our range of microprocessor based DIN rail mounted transmitters are high accuracy yet low cost and are ideal for a variety of industrial applications. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications with a configuration kit consisting of: an easy to use software package on a CD Rom, connection leads for attaching the transmitter to the serial port of your PC as well as instructions.
  • Available pre configured in a variety of ranges for thermocouple types
  • K, T or J and RTD Pt100 or alternatively not ranged for customer configuration
  • Temperature Linearised
  • Provides a 4-20mA output signal
  • For DIN rail mounting
  • CE marked

Specifications

  • Minimum Span: Thermocouple 50ºC, Pt100 25ºC
  • Temperature Linearised
  • Power supply: 14-40V DC
  • Operating temperature range: -30ºC/+85ºC
  • Thermocouple type: Cold junction drift 0.01ºC/ºC
  • Pt100 type: Maximum sensor line resistance 500 ohms, Sensor lead effect 0.001ºC/ohm Burnout: Upscale (max 35mA)
  • Power supply effect: ±0.001%/V
  • RFI protected
  • Dimensions: 79mm high x 22.5mm wide x 85.5mm deep
The following types are available:

DIN Rail Mounted Transmitter - Fixed Range

Order Code Description 1 - 4 5 - 9 10+ Buy
747-500 Type K -25°C/+ 50°C $291.00 $266.00 $244.00 Add
747-504 Type K 0°C/+100°C $291.00 $266.00 $244.00 Add
747-508 Type K 0°C/+200°C $291.00 $266.00 $244.00 Add
747-512 Type K 0°C/+300°C $291.00 $266.00 $244.00 Add
747-516 Type K 0°C/+600°C $291.00 $266.00 $244.00 Add
747-520 Type K 0°C/+900°C $291.00 $266.00 $244.00 Add
747-524 Type K 0°C/+1200°C $291.00 $266.00 $244.00 Add
747-528 Type T -25°C/+50°C $291.00 $266.00 $244.00 Add
747-532 Type T 0°C/+100°C $291.00 $266.00 $244.00 Add
747-536 Type T 0°C/+300°C $291.00 $266.00 $244.00 Add
747-540 Type T 0°C/+400°C $291.00 $266.00 $244.00 Add
747-544 Type J 0°C/+100°C $291.00 $266.00 $244.00 Add
747-548 Type J 0°C/+300°C $291.00 $266.00 $244.00 Add
747-552 Type J 0°C/+600°C $291.00 $266.00 $244.00 Add
747-556 Type J 0°C/+800°C $291.00 $266.00 $244.00 Add
747-560 3-wire, Pt100 -25°C/+50°C $291.00 $266.00 $244.00 Add
747-564 3-wire, Pt100 0°C/+100°C $291.00 $266.00 $244.00 Add
747-568 3-wire, Pt100 0°C/+150°C $291.00 $266.00 $244.00 Add
747-572 3-wire, Pt100 0°C/+200°C $291.00 $266.00 $244.00 Add
747-576 3-wire, Pt100 0°C/+300°C $291.00 $266.00 $244.00 Add
747-580 3-wire, Pt100 0°C/+400°C $291.00 $266.00 $244.00 Add

DIN Rail Mounted Transmitter - Adjustable

Order Code Description 1 - 4 5 - 9 10+ Buy
747-590 Adjustable Transmitter for Thermocouple or Pt100 $291.00 $266.00 $244.00 Add
747-460 Software, Connection Kit and Instructions for ranging $161.00 $147.00 $134.00 Add

Set Up Service for Transmitters

Order Code Description 1 - 4 5 - 9 10+ Buy
757-999 Set up of Sensor and Range $36.30 $33.20 $30.50 Add
