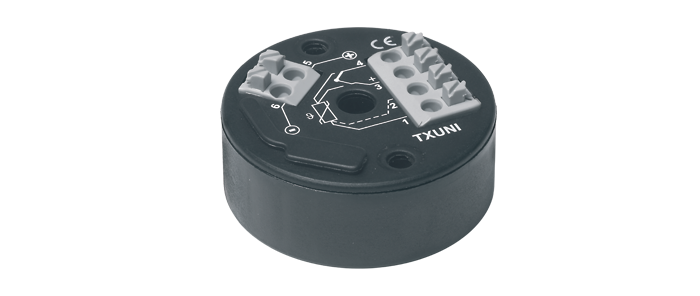

Thermocouple and Pt100 Transmitter - Head Mounted and Fully Isolated

Thermocouple and Pt100 Transmitter - Head Mounted and Fully Isolated view larger image
Our range of microprocessor based, fully isolated head mounted transmitters are high accuracy yet low cost and are ideal for a variety of industrial applications. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications with a configuration kit consisting of: an easy to use software package on a CD Rom, connection leads for attaching the transmitter to the USB port of your PC as well as instructions. They can be optionally DIN rail mounted. These transmitters need a regulated power supply, please specify part number 748-202 if required.
  • Available pre-configured in a variety of ranges for thermocouple types K, T or J or RTD Pt100 or alternatively not ranged for customer configuration for K, T, J, N, E, R, S & B and RTD Pt100/Pt1000
  • Fully isolated and Temperature Linearised
  • Provides a 4-20mA output signal
  • Suits all standard industrial connection heads with 33mm centre hole fixings or can be optionally DIN rail mounted
  • CE marked
Specifications:
Fully Isolated & Temperature Linearised
Power Supply: 7-30 V DC
Operating Temperature Range: -40°C / +85°C
Error Transmission: 0.1% (Measurement range) or 0.1°C (Pt100) and 0.5°C (Thermocouple)
Response Time (10..90%): <620ms
Burnout: Programmable (Upscale / Downscale) - Upscale standard
Connection: Push Fit Terminals for quick connection
RFI protected
Dimensions: 43.7mm dia x 20mm high body
The following types are available:

Fully Isolated Head Mounted Transmitter - Fixed Range

Order Code Description 1 - 9 10 - 24 25+ Buy
747-270 Type K -25ºC/+50ºC $182.00 $167.00 $153.00 Add
747-274 Type K 0°C/+100°C $182.00 $167.00 $153.00 Add
747-278 Type K 0°C/+200°C $182.00 $167.00 $153.00 Add
747-282 Type K 0°C/+300°C $182.00 $167.00 $153.00 Add
747-286 Type K 0°C/+600°C $182.00 $167.00 $153.00 Add
747-290 Type K 0°C/+900°C $182.00 $167.00 $153.00 Add
747-294 Type K 0°C/+1200°C $182.00 $167.00 $153.00 Add
747-298 Type T -25°C/+50°C $182.00 $167.00 $153.00 Add
747-302 Type T 0°C/+100°C $182.00 $167.00 $153.00 Add
747-306 Type T 0°C/+300°C $182.00 $167.00 $153.00 Add
747-310 Type T 0°C/+400°C $182.00 $167.00 $153.00 Add
747-314 Type J 0°C/+100°C $182.00 $167.00 $153.00 Add
747-318 Type J 0°C/+300°C $182.00 $167.00 $153.00 Add
747-322 Type J 0°C/+600°C $182.00 $167.00 $153.00 Add
747-326 Type J 0°C/+800°C $182.00 $167.00 $153.00 Add
747-330 3-wire, Pt100 -25°C/+50°C $182.00 $167.00 $153.00 Add
747-334 3-wire, Pt100 0°C/+100°C $182.00 $167.00 $153.00 Add
747-338 3-wire, Pt100 0°C/+150°C $182.00 $167.00 $153.00 Add
747-342 3-wire, Pt100 0°C/+200°C $182.00 $167.00 $153.00 Add
747-346 3-wire, Pt100 0°C/+300°C $182.00 $167.00 $153.00 Add
747-350 3-wire, Pt100 0°C/+400°C $182.00 $167.00 $153.00 Add
747-910 Optional DIN rail mounting kit $21.30 $19.50 $17.90 Add

Fully Isolated Head Mounted Transmitter - Adjustable

Order Code Description 1 - 9 10 - 24 25+ Buy
747-354 Transmitter for Thermocouple or Pt100 $182.00 $167.00 $153.00 Add
747-465 TX-PROG Configuration Software Kit $193.00 $176.00 $162.00 Add
747-910 Optional DIN rail mounting kit $20.20 $18.60 $17.00 Add

Set Up Service for Transmitters

Order Code Description 1 - 9 10 - 24 25+ Buy
747-999 Set up of Sensor type and Range $36.30 $33.20 $30.50 Add
