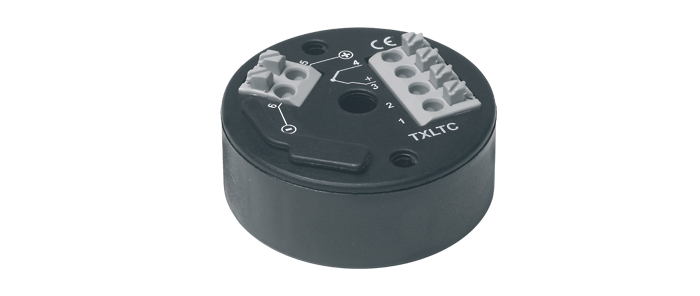

Thermocouple Transmitter - Head Mounted

Our microprocessor based range of linearised thermocouple transmitters are factory ranged for your convenience. They offer high accuracy yet low cost and are ideal for a variety of industrial applications. They can be optionally DIN rail mounted. These transmitters need a regulated power supply, please specify part number 748-202 if required.
  • Available pre-configured in a variety of ranges for thermocouple types K, T or J or alternatively not ranged for customer configuration for K, T, J, N, E, R, S and B thermocouple types
  • Fixed ranges for quick connection to your system
  • Provides a 4-20mA output signal
  • Suits all standard industrial connection heads with 33mm centre hole fixings or can be optionally DIN rail mounted
  • CE marked
Specifications:
Power Supply: 7-30 V DC
Operating Temperature Range: -40°C / +85°C
Error Transmission: 0.1% (min 0.5°C for Thermocouple)
Response Time (10..90%): <1 s
Temperature linearised
Burnout: Upscale default (programmable with software)
Connection: Push Fit Terminals for quick connection
Dimensions: 43.7mm dia x 20mm high body

Thermocouple Transmitter - Fixed Range

Order Code Description 1 - 9 10 - 24 25+ Buy
747-150 Type K -25°C/+150°C $116.00 $107.00 $97.00 Add
747-154 Type K 0°C/+200°C $116.00 $107.00 $97.00 Add
747-158 Type K 0°C/+300°C $116.00 $107.00 $97.00 Add
747-162 Type K 0°C/+600°C $116.00 $107.00 $97.00 Add
747-166 Type K 0°C/+900°C $116.00 $107.00 $97.00 Add
747-170 Type K 0°C/+1200°C $116.00 $107.00 $97.00 Add
747-174 Type T -25°C/+150°C $116.00 $107.00 $97.00 Add
747-178 Type T 0°C/+300°C $116.00 $107.00 $97.00 Add
747-182 Type T 0°C/+400°C $116.00 $107.00 $97.00 Add
747-186 Type J 0°C/+300°C $116.00 $107.00 $97.00 Add
747-190 Type J 0°C/+600°C $116.00 $107.00 $97.00 Add
747-194 Type J 0°C/+800°C $116.00 $107.00 $97.00 Add
747-910 Optional DIN rail mounting kit $20.20 $18.60 $17.00 Add

Thermocouple Transmitter - Adjustable

Order Code Description 1 - 9 10 - 24 25+ Buy
747-198 Transmitter for Thermocouple $116.00 $107.00 $97.00 Add
747-465 TX-PROG Configuration Software Kit $193.00 $176.00 $162.00 Add
747-910 Optional DIN rail mounting kit $20.20 $18.60 $17.00 Add

Set Up Service for Transmitters

Order Code Description 1 - 9 10 - 24 25+ Buy
747-999 Set up of Sensor type and range $36.30 $33.20 $30.50 Add
