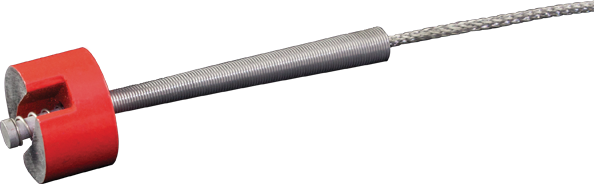

Spring Loaded High Temp Magnet RTD - Pt100
This spring loaded high temperature magnet RTD sensor is versatile and robust. It provides excellent surface temperature measurement between the range of -10°C to +250°C. Supplied with 2 or 5 metres of stainless steel braided fibreglass insulated cable, these sensors are perfect for applications where very close contact to the surface is critical whilst maintaining durability. There is also an anti-chafe spring which relieves strain on the cable when removing the magnet from surfaces, although it is not recommended to pull on the cable to remove the sensor after use.
- 3 wire configuration
- Surface temperature measurement of ferrous materials
- Spring loaded sensing tip to ensure maximum contact with surface
- Pt100 IEC 60751 Class B : 2008
- Operating range: -10 to +250°C
- 2 or 5 metres fibreglass insulated lead with Stainless Steel overbraid
- Anti-chafe spring to add strain relief to the cable
- 25.4mm diameter x 15.9mm thick magnet
The following types are available:
