Adjustable Ring RTD Sensor - Pt100

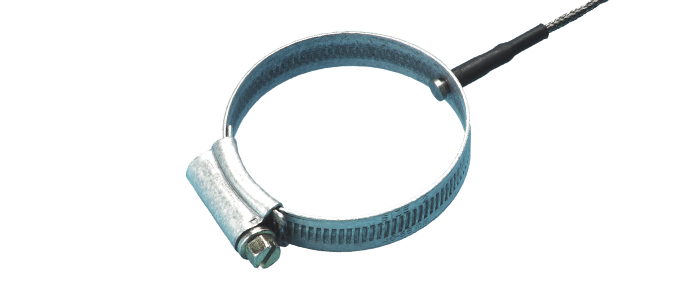

Adjustable Ring RTD Sensor - Pt100 view larger image
For pipe temperature measurement up to 350ºC. This sensor incorporates a Pt100 sensor attached to an adjustable ring. They are available in a number of sizes to suit your diameter of pipe. For enhanced performance we recommend that you lag the sensor after attaching to the pipe.
  • 3 wire configuration
  • Pt100 element meets IEC 60751 Class B : 2008
  • Versions for pipes 32mm-50mm, 50-150mm or 150-300mm offered
  • Operating range: -50ºC to 350ºC
  • Leads: 2 metres fibreglass insulated with a stainless steel overbraid
These sensors are recommended for general indication only. For fast response or high accuracy versions, please contact TC Direct.
The following types are available:

Adjustable Ring RTD Sensor

Order Code Description 1 - 9 10 - 24 25+ Buy
515-270 Ring RTD sensor 32-50mm $84.00 $78.00 $70.00 Add
515-273 Ring RTD sensor 50-150mm $88.00 $81.00 $74.00 Add
515-276 Ring RTD sensor 150-300mm $91.00 $83.00 $77.00 Add
