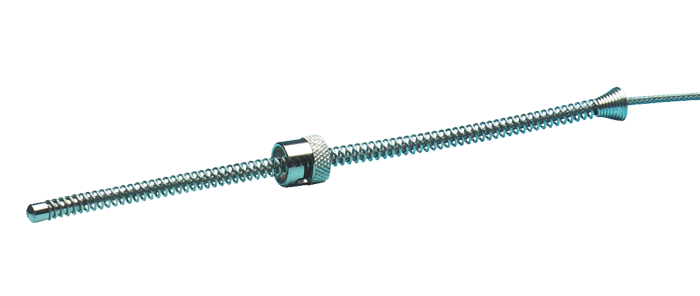

Bayonet RTD Sensor - Pt100 with spring and cap
Suitable for plastics machinery and general purpose applications, these assemblies are supplied with a 200mm spring which an industry standard one slot adjustable bayonet cap fitting is screwed onto. The fitting can be fine tuned for positioning on site and is suitable where several applications in your plant require individual positioning of the sensor.
The sensing tip is incorporated within a 18mm long x 4.7, 6.0 or 8.0mm diameter tube which the stainless steel braided leads are sealed into.
- 3 wire configuration
- Pt100 element meets IEC 60751 Class B : 2008
- Sheath and lead rated -50ºC to +300ºC
- Sheath: 316L stainless steel 4.7, 6.0 or 8.0mm dia x 18mm long
- Leads: 2 metres fibreglass insulated with stainless steel overbraid (including spring length)
Note: All bayonet adaptors are 2mm long.
The following types are available:
