RTD Sensor - Pt100 with a Size 1 Lemo Connector
These rigid sensors have a stainless steel welded closed end sheath. The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. The sensor is rated up to 250ºC. They are terminated with a size 1 Lemo plug or socket. Ideal where quick disconnection is required near to the sensor. Matching connectors and a range of extension cables and adjustable compression fittings can be found in this catalogue to complement this product.
- 4 wire configuration
- Pt100 element meets IEC 60751 Class B : 2008
- Sheath: 316L Stainless Steel 3mm OD
- Variety of lengths available. Length shown does not include the plug or its adaptor
- Operating range: -75ºC to +250ºC

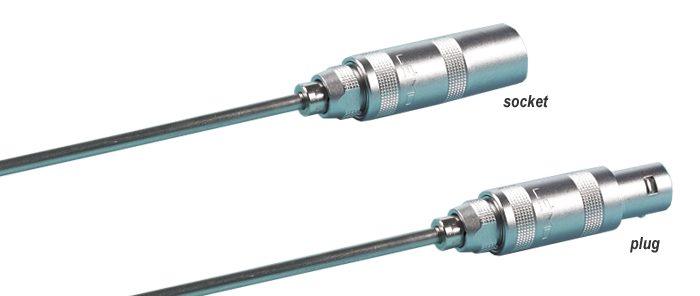

- Terminated in a size 1 Lemo plug or socket. Matching connectors are available separately
The following types are available:
