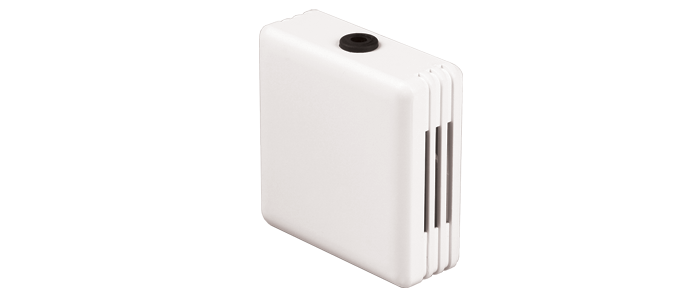

Indoor Air Temperature RTD Sensor - Pt100 and Pt1000
This air temperature sensor incorporates a Class B RTD Pt100 or Pt1000 element which can be wall mounted and is most suited to indoor applications especially in energy management systems.
- Plastic enclosure dimensions: 86 x 86 x 38mm
- 3 wire configuration
- Sensor: IEC 60751 Class B : 2008 - RTD Pt100 element or Pt1000 element
- Wire termination: Screw terminal block
- Mounting: Suited to wall mounting via screw holes in back of case
- Cable entry: Via base of enclosure knock out hole
- Operating range: -20°C to +100°C
The following types are available:
