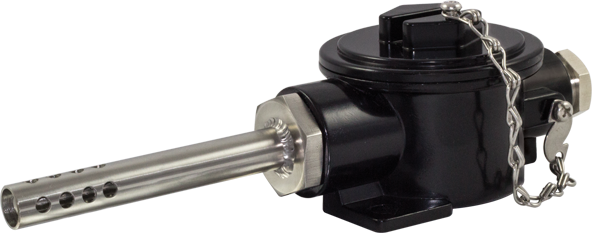

IP68 Rated External/Rugged Air Temperature Wall Mounting Sensor
This rugged air temperature
sensor is ideal for any internal or
external application requiring a
rapid response to changes in air
temperature. Its robust
construction features an IP68
rated terminal head with 2
mounting holes at either end of
the head which can be affixed to a wall or other surface. The sensor itself is housed within a
perforated stainless steel tube which allows free flow of air across the sensor element, which
in turn will give a good response time. A version is also available with a 4~20mA output for
those requiring a standard transducer signal.
- Metal enclosure dimensions: 58 x 68 x 98mm
- Sheath dimensions: 12.7mm dia x 75mm long pierced shrouded tip
- 3 wire configuration
- Sensor: IEC 60751 Class B : 2008 - RTD Pt100 element or alternatively with an
optional 4-20mA transmitter incorporated
- Wire termination: Screw terminal block
- Mounting: Suited to wall mounting via screw holes at either end of screw top case
- Cable entry: via weatherproof cable gland supplied
- Operating range: -30°C to +150°C
The following types are available:
