RTD Sensor - Pt100 with Hirschmann Connector

RTD Sensor - Pt100 with Hirschmann Connector view larger image

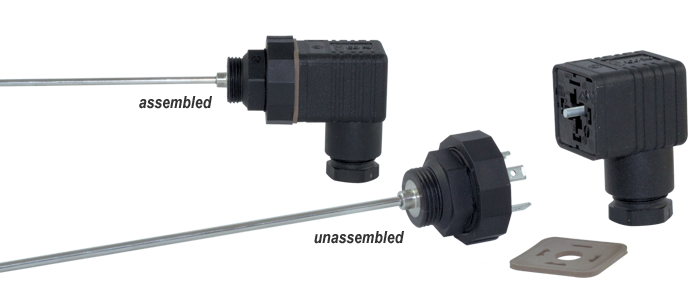

These rigid sensors have a 10mm long sensing element at the tip within a stainless steel welded closed end sheath. To achieve the most reliable reading, the minimum immersion depth should be at least 50mm. They are terminated in a Hirschmann connector, which is comprised of a plug and socket and a gasket in between which makes the sensor IP65 rated.
  • 3 wire configuration
  • Pt100 element meets IEC 60751 Class B : 2008
  • Sheath: 316L Stainless Steel 3mm or 6mm OD
  • Operating range: -50°C to +200°C
  • IP65 Rated
The following types are available:

RTD Sensor - Pt100 with Hirschmann Connector

Order Code Description 1 - 9 10 - 25 26 - 50 Buy
514-933 3mm dia x 150mm long $118.00 $107.00 $99.00 Add
514-936 3mm dia x 300mm long $120.00 $109.00 $100.00 Add
514-939 3mm dia x 500mm long $121.00 $111.00 $101.00 Add
514-942 6mm dia x 150mm long $118.00 $107.00 $99.00 Add
514-945 6mm dia x 300mm long $120.00 $109.00 $100.00 Add
514-948 6mm dia x 500mm long $121.00 $111.00 $101.00 Add
