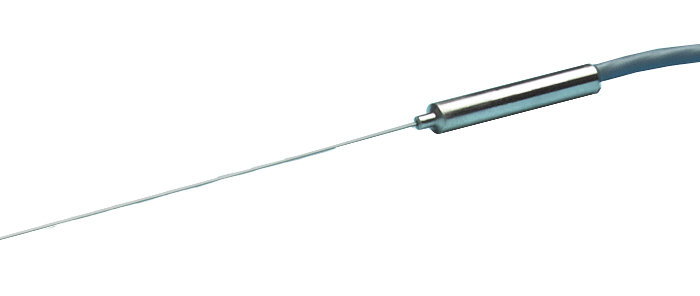

Miniature RTD Sensor - Pt100 - 0.5 to 1.6mm diameter
These miniature RTD sensors are available in either 0.5mm, 0.8mm, 1.0mm or 1.6mm diameters. They have an incredibly fast response time compared to larger diameter sensors and are ideal for applications such as laboratories or applications where response time is critical. They are supplied as four wire devices but by simply selecting only two red and one white leads they can also be used as three wire devices. The sensor is rated up to 200ºC. They are terminated with a pot seal which allows the attachment of the 1 metre long PVC extension leads. These sensors are supplied in a custom built case to ensure they are received by you in perfect condition and for you to store them safely when not in use.
- 4 wire configuration (but also suitable for 3 wire configuration)
- Pt100 element meets IEC 60751 Class A : 2008
- Sheath: 316 Stainless Steel 0.5mm, 0.8mm, 1.0mm or 1.6mm
- 100mm or 200mm long versions available. Length shown does not include pot seal or leads
- Operating range: -100ºC to +200ºC
- Terminated in a pot seal rated to 60ºC
- Extension Leads: 1 metre long, 7/0.2mm dia PVC insulated cores with a PVC oversheath.
The following types are available:
