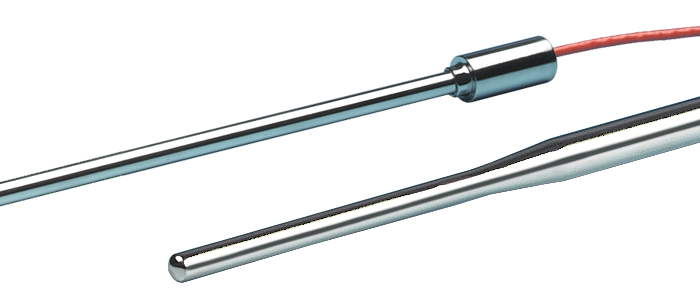

Swaged RTD Sensor - Pt100 with Pot Seal
A unique fast response, high strength, low cost solution to many problematical temperature measurement applications. Rugged large diameter with a low thermal mass reduced tip provides for incredibly fast response. They are terminated with a pot seal which allows the attachment of the 2 metre long PFA extension lead. A range of extension cables and adjustable compression fittings can be found in this catalogue to complement this product. Do remember to select compression fittings for the larger diameter of the sensor.
- 3 wire configuration
- Pt100 element meets IEC 60751 Class B : 2008
- Sheath Material: 316L Stainless Steel
- Variety of lengths and diameters available. Length shown does not include the pot seal or extension leads
- The swaged tip part of the sensor is approximately 50mm long. This part of the sensor has nominal dimensions due to the nature of swaging
- Operating range: -75ºC to +250ºC
- Terminated in a pot seal 12.7mm OD x 29mm long rated to 135ºC
- Extension Leads: 2 metres long, 7/0.2mm dia PFA® insulated cores with PFA oversheath. 3 wire - 2 coloured red and 1 coloured white
The following types are available:
