Self Adhesive Patch RTD - Pt100 Sensor

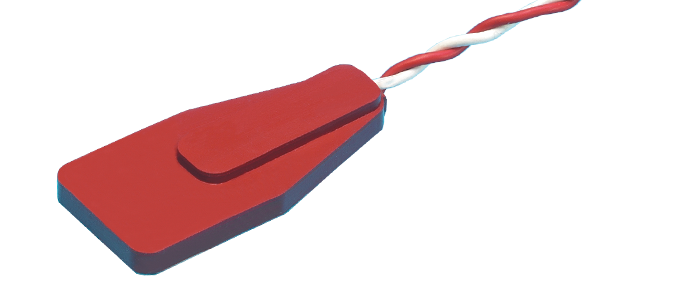

Self Adhesive Patch RTD - Pt100 Sensor view larger image
This sensor incorporates a silicon rubber patch with a Pt100 thin film element within, attached to 2 metre long PFA leads. They are available in two different patch sizes for customer convenience. The patch is self adhesive and when placed in position enables good response times from the flush mounted Pt100 element.
  • Pt100 thin film element meets IEC 60751 Class B : 2008
  • Rubber patch dimensions
    Standard: 30mm x 14mm x 3.4mm maximum depth
    Large: 40mm x 14mm x 7mm maximum depth
  • This is a 4 wire device; however, it can easily be used for three wire applications by omitting to connect up one of the white leads
  • Sensor housing: Silicon rubber with self adhesive backing
  • Operating range: -50°C to +150°C
  • Leads: 2 metres PFA insulated
The following types are available:

Self Adhesive Patch RTD Sensor

Order Code Description 1 - 4 5 - 9 10+ Buy
515-670 Standard Self Adhesive RTD sensor 30 x 14 x 3.4mm $93.00 $85.00 $78.00 Add
515-675 Large Self Adhesive RTD sensor 40 x 14 x 7mm $100.00 $90.00 $83.00 Add
