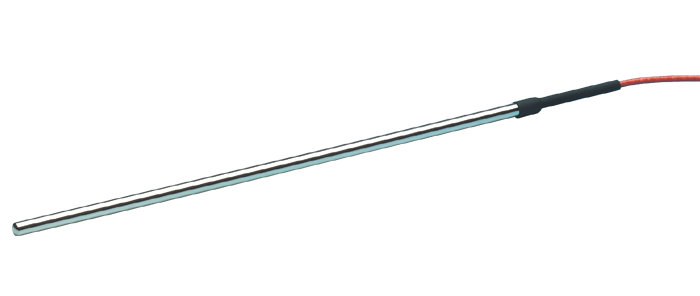

Precision RTD - Pt100 Sensor

Precision RTD - Pt100 Sensor view larger image
This precision Pt100 sensor can be used as a temperature reference for comparison of other temperature sensors or alternatively as a high accuracy Pt100 sensor for exacting temperature measurement. Sensors supplied with UKAS calibration certificates are also available.
  • Pt100 element meets IEC 60751 Class 1/10
  • Accuracy of element: ±0.03°C equating to a typical sensor accuracy of better than ±0.06°C at 0°C
  • This is a 4 wire device; however, it can easily be used for three wire applications by omitting to connect up one of the white leads
  • Recommended minimum insertion length: Typically at least 150mm
  • Sensing area: The first 20mm from tip
  • Operation range: -50°C to +250°C
  • Sheath: 316L Stainless Steel 3mm or 6mm dia x 250mm long
  • Leads: 2 metres PFA insulated
  • A UKAS calibration certificate at 0, 100 & 200°C is available or alternatively choose your own points (approx. 5 - 7 working days for delivery)
The following types are available:

Precision RTD Sensor

Order Code Description 1 - 4 5 - 9 10+ Buy
515-720 Precision RTD sensor 3mm x 250mm $280.00 $264.00 $249.00 Add
515-725 Precision RTD sensor 6mm x 250mm $280.00 $264.00 $249.00 Add
515-730 As 515-720 with Cal Cert at 0°C, 100°C and 200°C $570.00 $527.00 $489.00 Add
515-735 As 515-720 with Cal Cert at 3 custom points $589.00 $545.00 $506.00 Add
515-740 As 515-725 with Cal Cert at 0°C, 100°C and 200°C $542.00 $502.00 $467.00 Add
515-745 As 515-725 with Cal Cert at 3 custom points $563.00 $521.00 $485.00 Add
