Small Budget RTD Sensor - Pt100

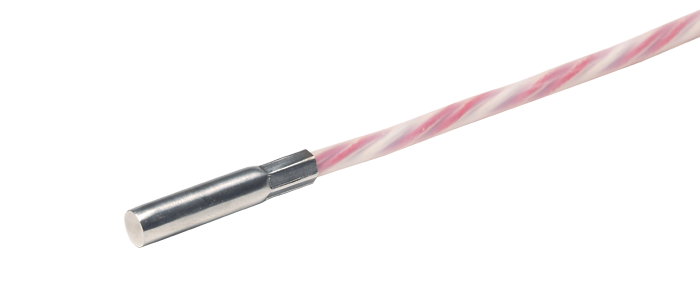

Small Budget RTD Sensor - Pt100 view larger image
These small rigid sensors have a 6mm diameter stainless steel welded closed end sheath crimp sealed to 2metres of flexible silicone rubber insulated cable. The sensor is designed for general purpose use and will give reliable performance in a wide variety of applications and are suitable for use up to 200ºC.
  • 3 wire configuration
  • Pt100 element meets IEC 60751 Class B : 2008
  • Sheath: 316L Stainless Steel 6mm OD x 30mm long
  • Operating range: -50ºC to +200ºC
  • Extension Leads: 2 metres long, 7/0.2mm dia PFA insulated cores with silicone rubber oversheath. 3 wire - 2 coloured red and 1 coloured white
The following types are available:

Small Budget RTD Sensor - Pt100

Order Code Description 1 - 9 10 - 25 26 - 50 Buy
514-140 Small Budget RTD Sensor $45.30 $41.50 $37.90 Add
