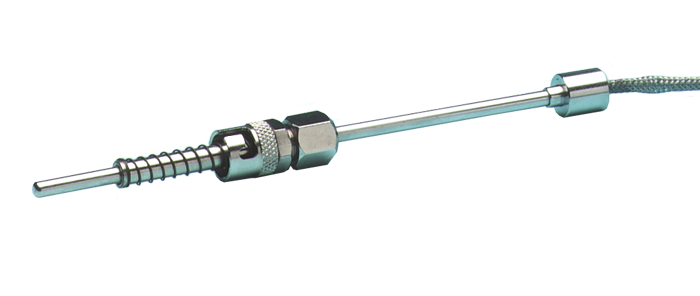

Bayonet RTD sensor - Pt100 with an adjustable cap fitting

Bayonet RTD sensor - Pt100 with an adjustable cap fitting view larger image
Suitable for plastics machinery and general purpose applications these assemblies are supplied in several different lengths with an industry standard one slot adjustable bayonet cap fitting. The fitting can be fine tuned for positioning on site and is suitable where several applications in your plant require individual positioning of the sensor.
  • 3 wire configuration
  • Pt100 element meets IEC 60751 Class B : 2008
  • Rated -50ºC to +350ºC
  • Sheath: 316L stainless steel 4.5mm dia x 100, 150 or 200mm long
  • Leads: 2 metres fibreglass insulated with a stainless steel overbraid
The following types are available:

Bayonet RTD Sensor

Order Code Description 1 - 4 5 - 9 10+ Buy
515-190 Bayonet RTD Sensor - 100mm long $69.00 $63.00 $58.00 Add
515-193 Bayonet RTD Sensor - 150mm long $71.00 $65.00 $59.00 Add
515-196 Bayonet RTD Sensor - 200mm long $73.00 $66.00 $61.00 Add
401-198 Spare adjustable bayonet cap fitting $18.20 $16.70 $15.30 Add
401-169 1/8 inch BSP adaptor x 22mm long $6.60 $6.10 $5.70 Add
