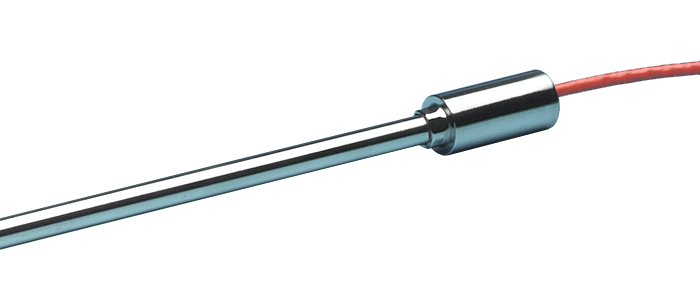

RTD Sensor - Pt100 Mineral Insulated with Pot Seal 500°C / 600°C Rated

RTD Sensor - Pt100 Mineral Insulated with Pot Seal 500°C / 600°C Rated view larger image
Ideal for either high temperature applications or situations requiring a long probe length, these semi flexible sensors have a stainless steel mineral insulated welded closed end sheath. The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. The sensor is rated up to 500ºC or 600ºC at the tip. They are terminated with a pot seal rated to 135ºC which allows the attachment of the 2 metre long PFA extension lead. A range of adjustable compression fittings can be found on this website to complement this product.
  • 3 wire configuration
  • Pt100 element meets IEC 60751 Class B
  • Sheath: 316 Stainless Steel Mineral Insulated 3mm or 6mm OD
  • Variety of lengths available. Length shown does not include pot seal or leads
  • Operating range: -75ºC to +500ºC or -200ºC to+600ºC
  • Terminated in a pot seal 12mm OD x 29mm long rated to 135ºC
  • Extension Leads: 2 metres long, 7/0.2mm dia PFA insulated cores with a PFA oversheath. 3 wire - 2 coloured red and 1 coloured white
  • Extension Leads: 2 metres long, 7/0.2mm dia PFA insulated cores with a PFA® oversheath. 3 wire - 2 coloured red and 1 coloured white
The following types are available:

RTD Sensor -75°C to +500°C Rated with Pot Seal

Order Code Description 1 - 4 5 - 9 10+ Buy
516-645 3mm dia x 100mm long $93.00 $84.00 $78.00 Add
516-648 3mm dia x 150mm long $94.00 $85.00 $79.00 Add
516-651 3mm dia x 200mm long $96.00 $86.00 $80.00 Add
516-654 3mm dia x 250mm long $97.00 $87.00 $81.00 Add
516-657 3mm dia x 300mm long $99.00 $89.00 $82.00 Add
516-658 3mm dia x 400mm long $101.00 $93.00 $84.00 Add
516-660 3mm dia x 500mm long $103.00 $94.00 $85.00 Add
516-661 3mm dia x 750mm long $113.00 $103.00 $95.00 Add
516-663 3mm dia x 1000mm long $120.00 $110.00 $101.00 Add
516-666 3mm dia x 2000mm long $153.00 $141.00 $128.00 Add
516-669 3mm dia x 4000mm long $214.00 $196.00 $179.00 Add
516-625 6mm dia x 100mm long $93.00 $84.00 $78.00 Add
516-628 6mm dia x 150mm long $94.00 $85.00 $79.00 Add
516-631 6mm dia x 200mm long $96.00 $86.00 $80.00 Add
516-634 6mm dia x 250mm long $97.00 $87.00 $81.00 Add
516-671 6mm dia x 300mm long $99.00 $89.00 $82.00 Add
516-637 6mm dia x 400mm long $101.00 $93.00 $84.00 Add
516-672 6mm dia x 500mm long $103.00 $94.00 $85.00 Add
516-640 6mm dia x 750mm long $113.00 $103.00 $95.00 Add
516-675 6mm dia x 1000mm long $120.00 $110.00 $101.00 Add
516-678 6mm dia x 2000mm long $153.00 $141.00 $128.00 Add
516-681 6mm dia x 4000mm long $214.00 $196.00 $179.00 Add

RTD Sensor -200°C to +600°C Rated with Pot Seal

Order Code Description 1 - 4 5 - 9 10+ Buy
514-645 3mm dia x 100mm long $107.00 $97.00 $90.00 Add
514-648 3mm dia x 150mm long $108.00 $98.00 $91.00 Add
514-651 3mm dia x 200mm long $110.00 $99.00 $92.00 Add
514-654 3mm dia x 250mm long $112.00 $100.00 $93.00 Add
514-657 3mm dia x 300mm long $114.00 $102.00 $94.00 Add
514-658 3mm dia x 400mm long $116.00 $107.00 $97.00 Add
514-660 3mm dia x 500mm long $118.00 $108.00 $98.00 Add
514-661 3mm dia x 750mm long $130.00 $118.00 $109.00 Add
514-663 3mm dia x 1000mm long $138.00 $127.00 $116.00 Add
514-666 3mm dia x 2000mm long $176.00 $162.00 $147.00 Add
514-669 3mm dia x 4000mm long $246.00 $225.00 $206.00 Add
514-625 6mm dia x 100mm long $107.00 $97.00 $90.00 Add
514-628 6mm dia x 150mm long $108.00 $98.00 $91.00 Add
514-631 6mm dia x 200mm long $110.00 $99.00 $92.00 Add
514-634 6mm dia x 250mm long $112.00 $100.00 $93.00 Add
514-671 6mm dia x 300mm long $114.00 $102.00 $94.00 Add
514-637 6mm dia x 400mm long $116.00 $107.00 $97.00 Add
514-672 6mm dia x 500mm long $118.00 $108.00 $98.00 Add
514-640 6mm dia x 750mm long $130.00 $118.00 $109.00 Add
514-675 6mm dia x 1000mm long $138.00 $127.00 $116.00 Add
514-678 6mm dia x 2000mm long $176.00 $162.00 $147.00 Add
514-681 6mm dia x 4000mm long $246.00 $225.00 $206.00 Add
