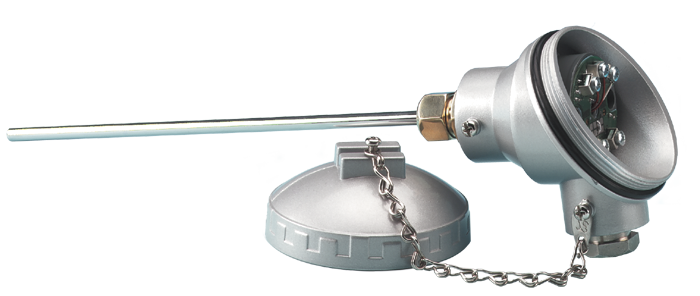

RTD Sensor - Pt100 with Standard Weatherproof Head and 4-20mA Transmitter
These rigid sensors have a stainless steel welded closed end sheath. The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. The sensor is rated up to 250ºC. A 4-20mA transmitter ranged either -25°C to 100°C, 0°C to 200°C or 0°C to 350°C is incorporated into the head, so that you may extend the sensor with standard 2 wire copper instrument cable within your loop system. The standard head is weatherproof to IP67. The sensor is rated up to 350ºC. Ideal where quick disconnection is required near to the sensor. A range of extension cables and adjustable compression fittings can be found in this catalogue to complement this product. Other ranges are available on request.
- 3 wire configuration
- PT100 element meets IEC 60751 Class B : 2008
- Sheath: 316L Stainless Steel 6mm OD
- Variety of lengths available. Length shown does not include the head or its gland
- Operating range: -75ºC to +350ºC dependent on model chosen
- Terminated in an IP67 standard weatherproof head rated to 135ºC with head mounted 4-20mA transmitter
The following types are available:
