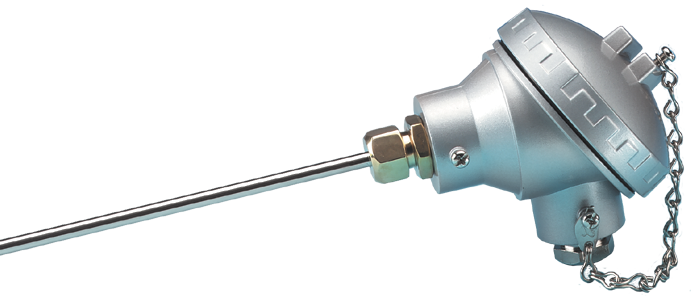

RTD Sensor - Pt100 with Standard IP67 Weatherproof Head
These rigid sensors have a stainless steel welded closed end sheath. The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. The sensor is rated up to 250ºC. They are terminated with an IP67 standard weatherproof head. Ideal where a heavy duty connection needs to be made near to the sensor. A range of extension cables and adjustable compression fittings can be found in this catalogue to complement this product.
- 3 wire configuration
- Pt100 element meets IEC 60751 Class B : 2008
- Sheath: 316L Stainless Steel 6mm or 8mm OD
- Variety of lengths available. Length shown does not include the head or its gland
- Operating range: -75ºC to +250ºC
- Terminated in an IP67 standard weatherproof die cast alloy head rated to 135ºC
The following types are available:
