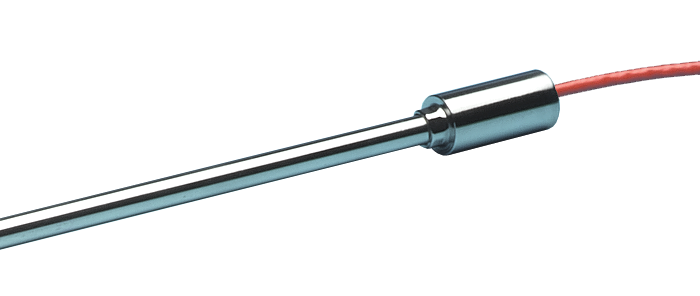

RTD Sensor - Pt100 with Pot Seal
These rigid sensors have a stainless steel welded closed end sheath. The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. The sensor is rated up to 250ºC. They are terminated with a pot seal which allows the attachment of the 2 metre long PFA extension lead. A range of adjustable compression fittings can be found in this catalogue to complement this product.
- 3 wire configuration
- Pt100 element meets IEC 60751 Class B : 2008
- Sheath: 316L Stainless Steel 3mm or 6mm OD
- Variety of lengths available. Length shown does not include pot seal or leads
- Operating range: -75ºC to +250ºC
- Terminated in a pot seal 12mm OD x 29mm long rated to 135ºC
- Extension Leads: 2 metres long, 7/0.2mm dia PFA insulated cores with a PFA® oversheath. 3 wire - 2 coloured red and 1 coloured white
The following types are available:
