Standard Budget RTD Sensor - Pt100 and Pt1000

Standard Budget RTD Sensor - Pt100 and Pt1000 view larger image

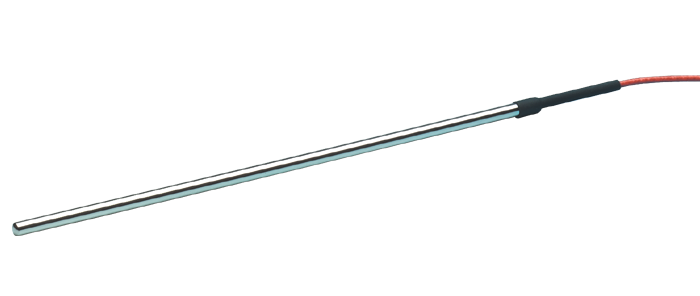

These rigid sensors have a stainless steel welded closed end sheath. The sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. They are terminated with heat shrink which allows the attachment of the 2 metre long PFA extension lead. They are an ideal budget buy for general use up to 250ºC. A range of adjustable compression fittings can be found in this catalogue to complement this product.
  • 3 wire configuration
  • IEC 60751 Class B : 2008 RTD Pt100 element or Pt1000 element
  • Sheath: 316L Stainless Steel 3mm or 6mm OD
  • Variety of lengths available (not including heat shrink or extension leads)
  • Operating range: -50°C to +250°C
  • Extension Leads: 2 metres long, 7/0.2mm dia PFA insulated cores with PFA oversheath. 3 wire - 2 coloured red and 1 coloured white
The following types are available:

Standard Budget RTD Sensor - Pt100

Order Code Description 1 - 9 10 - 24 25+ Buy
514-100 3mm dia x 50mm long $46.30 $42.60 $39.60 Add
514-103 3mm dia x 100mm long $46.80 $43.40 $40.00 Add
514-106 3mm dia x 150mm long $47.60 $43.90 $40.80 Add
514-109 3mm dia x 200mm long $48.10 $44.50 $41.20 Add
514-110 3mm dia x 250mm long $48.80 $45.00 $41.60 Add
514-112 3mm dia x 300mm long $49.40 $45.60 $42.10 Add
514-113 3mm dia x 400mm long $51.00 $46.50 $43.20 Add
514-115 3mm dia x 500mm long $52.00 $48.00 $44.30 Add
514-150 4.5mm dia x 50mm long $46.30 $42.60 $39.60 Add
514-152 4.5mm dia x 100mm long $46.80 $43.40 $40.00 Add
514-154 4.5mm dia x 150mm long $47.60 $43.90 $40.80 Add
514-156 4.5mm dia x 200mm long $48.10 $44.50 $41.20 Add
514-158 4.5mm dia x 250mm long $48.80 $45.00 $41.60 Add
514-160 4.5mm dia x 300mm long $49.40 $45.60 $42.10 Add
514-162 4.5mm dia x 400mm long $51.00 $46.50 $43.20 Add
514-164 4.5mm dia x 500mm long $52.00 $48.00 $44.30 Add
514-119 6mm dia x 50mm long $46.30 $42.60 $39.60 Add
514-121 6mm dia x 100mm long $46.80 $43.40 $40.00 Add
514-124 6mm dia x 150mm long $47.60 $43.90 $40.80 Add
514-127 6mm dia x 200mm long $48.10 $44.50 $41.20 Add
514-128 6mm dia x 250mm long $48.80 $45.00 $41.60 Add
514-130 6mm dia x 300mm long $49.40 $45.60 $42.10 Add
514-131 6mm dia x 400mm long $51.00 $46.50 $43.20 Add
514-133 6mm dia x 500mm long $52.00 $48.00 $44.30 Add

Standard Budget RTD Sensor - Pt1000

Order Code Description 1 - 9 10 - 24 25+ Buy
514-002 3mm dia x 50mm long $48.40 $44.70 $41.40 Add
514-004 3mm dia x 100mm long $49.10 $45.30 $42.00 Add
514-006 3mm dia x 150mm long $49.60 $45.80 $42.30 Add
514-008 3mm dia x 200mm long $51.00 $46.40 $43.00 Add
514-010 3mm dia x 250mm long $51.00 $47.00 $43.50 Add
514-012 3mm dia x 300mm long $52.00 $47.60 $44.00 Add
514-014 3mm dia x 400mm long $53.00 $48.60 $45.00 Add
514-016 3mm dia x 500mm long $54.00 $49.70 $45.90 Add
514-018 6mm dia x 50mm long $48.40 $44.70 $41.40 Add
514-020 6mm dia x 100mm long $49.10 $45.30 $42.00 Add
514-022 6mm dia x 150mm long $49.60 $45.80 $42.30 Add
514-024 6mm dia x 200mm long $51.00 $46.40 $43.00 Add
514-026 6mm dia x 250mm long $51.00 $47.00 $43.50 Add
514-028 6mm dia x 300mm long $52.00 $47.60 $44.00 Add
514-030 6mm dia x 400mm long $53.00 $48.60 $45.00 Add
514-032 6mm dia x 500mm long $54.00 $49.70 $45.90 Add
