Miniature 0.25, 0.5 and 0.75mm dia Mineral Insulated Thermocouple with Pot Seal

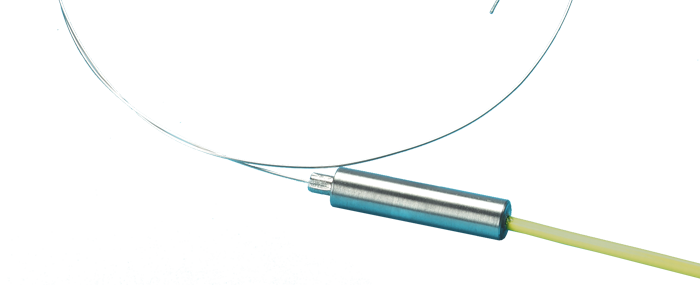

Miniature 0.25, 0.5 and 0.75mm dia Mineral Insulated Thermocouple with Pot Seal view larger image
These miniature semi rigid thermocouples are ideal for many demanding precision temperature measurement applications due to the response, size, displacement and robustness of the assembly. Applications are varied from laboratory work to situations where the temperature changes are rapid and require a sensor to cope with this sudden change. They have insulated junctions to prevent earth loops and can be formed to shape to suit particular applications without impairing performance. A pot seal which allows the transition to 2 metre PFA insulated leads is supplied as standard. A range of extension cables and adjustable compression fittings can be found in this catalogue to complement this product.
  • Rapid response, minimum size and least displacement
  • Thermocouple types K, T or J available (Only type K for 0.25mm)
  • Sheath diameter: 0.25mm, 0.5mm or 0.75mm
  • Variety of lengths available
  • Various sheath materials available - see below
  • Operating range: -100°C to 800°C
  • Insulated Junction
  • Leads: 2 metres PFA insulated, colour coded to ANSI MC96.1
  • Terminated in a pot seal rated to 85ºC
  • 0.25mm diameter versions are supplied in a custom built case
The following types are available:

Type K

Order Code Description 1 - 9 10 - 24 25+ Buy
606-473 0.25mm dia x 150mm long – 321 St./St. $134.00 $123.00 $112.00 Add
606-475 0.25mm dia x 250mm long – 321 St./St. $141.00 $130.00 $117.00 Add
606-477 0.25mm dia x 500mm long – 321 St./St. $154.00 $139.00 $128.00 Add
606-479 0.25mm dia x 1000mm long – 321 St./St. $176.00 $161.00 $150.00 Add
606-480 0.5mm dia x 150mm long – 321 St./St. $82.00 $75.00 $69.00 Add
606-482 0.5mm dia x 250mm long – 321 St./St. $85.00 $78.00 $71.00 Add
606-484 0.5mm dia x 500mm long – 321 St./St. $91.00 $83.00 $76.00 Add
606-486 0.5mm dia x 1000mm long – 321 St./St. $101.00 $92.00 $84.00 Add
606-620 0.75mm dia x 150mm long – Inconel 600 $85.00 $78.00 $71.00 Add
606-622 0.75mm dia x 250mm long – Inconel 600 $88.00 $80.00 $73.00 Add
606-624 0.75mm dia x 500mm long – Inconel 600 $94.00 $85.00 $78.00 Add
606-626 0.75mm dia x 1000mm long – Inconel 600 $104.00 $95.00 $87.00 Add

Type T

Order Code Description 1 - 9 10 - 24 25+ Buy
606-491 0.5mm dia x 150mm long – 321 St./St. $82.00 $75.00 $69.00 Add
606-494 0.5mm dia x 250mm long – 321 St./St. $85.00 $78.00 $71.00 Add
606-497 0.5mm dia x 500mm long – 321 St./St. $91.00 $83.00 $76.00 Add
606-500 0.5mm dia x 1000mm long – 321 St./St. $101.00 $92.00 $84.00 Add

Type J

Order Code Description 1 - 9 10 - 24 25+ Buy
606-511 0.5mm dia x 150mm long – 321 St./St. $82.00 $75.00 $69.00 Add
606-514 0.5mm dia x 250mm long – 321 St./St. $85.00 $78.00 $71.00 Add
606-517 0.5mm dia x 500mm long – 321 St./St. $91.00 $83.00 $76.00 Add
606-520 0.5mm dia x 1000mm long – 321 St./St. $101.00 $92.00 $84.00 Add

Type N

Order Code Description 1 - 9 10 - 24 25+ Buy
608-900 0.25mm dia x 150mm long - Inconel 600 $174.00 $158.00 $143.00 Add
608-902 0.25mm dia x 250mm long - Inconel 600 $183.00 $172.00 $152.00 Add
608-904 0.25mm dia x 500mm long - Inconel 600 $194.00 $178.00 $163.00 Add
608-906 0.25mm dia x 1000mm long - Inconel 600 $229.00 $209.00 $189.00 Add
608-908 0.5mm dia x 150mm long - Inconel 600 $105.00 $95.00 $88.00 Add
608-910 0.5mm dia x 250mm long - Inconel 600 $109.00 $99.00 $91.00 Add
608-912 0.5mm dia x 500mm long - Inconel 600 $117.00 $106.00 $97.00 Add
608-914 0.5mm dia x 1000mm long - Inconel 600 $132.00 $121.00 $108.00 Add
606-522 0.5mm dia x 150mm long – Nicrotherm DTM $114.00 $105.00 $97.00 Add
606-525 0.5mm dia x 250mm long – Nicrotherm DTM $125.00 $114.00 $105.00 Add
606-528 0.5mm dia x 500mm long – Nicrotherm DTM $147.00 $134.00 $128.00 Add
606-531 0.5mm dia x 1000mm long – Nicrotherm DTM $191.00 $176.00 $163.00 Add
