Mineral Insulated Thermocouple with a Size 1 Lemo Connector

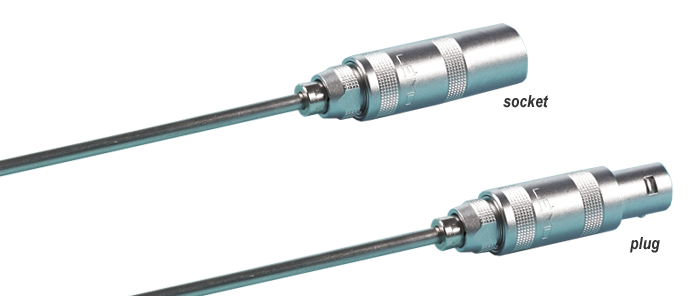

Mineral Insulated Thermocouple with a Size 1 Lemo Connector view larger image
These semi rigid thermocouples are ideal for all applications from simple temperature measurement to more arduous environments. They have insulated junctions to prevent earth loops and can be formed to shape to suit particular applications without impairing performance. A Size 1 Lemo plug or socket is incorporated and is compatible with the Lemo connectors available in this catalogue. A range of extension cables and adjustable compression fittings can also be found in this catalogue to complement this product.
  • Thermocouple types K or, T
  • Variety of lengths and diameters available
  • Sheath Material: Type K - 310 Stainless Steel , Type T - 321 Stainless Steel
  • Insulated Junction
  • Terminated in a Size 1 Lemo plug or socket
  • The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.
The following types are available:

Type K - 310 Stainless Steel Sheath (1100°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
407-500 1.5mm dia x 150mm long with size 1 Lemo Plug $143.00 $130.00 $119.00 Add
407-501 1.5mm dia x 150mm long with size 1 Lemo Socket $143.00 $130.00 $119.00 Add
407-505 1.5mm dia x 300mm long with size 1 Lemo Plug $143.00 $130.00 $119.00 Add
407-506 1.5mm dia x 300mm long with size 1 Lemo Socket $143.00 $130.00 $119.00 Add
407-510 1.5mm dia x 500mm long with size 1 Lemo Plug $144.00 $131.00 $120.00 Add
407-511 1.5mm dia x 500mm long with size 1 Lemo Socket $144.00 $131.00 $120.00 Add
407-515 1.5mm dia x 1000mm long with size 1 Lemo Plug $148.00 $135.00 $125.00 Add
407-516 1.5mm dia x 1000mm long with size 1 Lemo Socket $148.00 $135.00 $125.00 Add
407-520 1.5mm dia x 2000mm long with size 1 Lemo Plug $155.00 $142.00 $130.00 Add
407-521 1.5mm dia x 2000mm long with size 1 Lemo Socket $155.00 $142.00 $130.00 Add
407-525 3.0mm dia x 150mm long with size 1 Lemo Plug $143.00 $130.00 $119.00 Add
407-526 3.0mm dia x 150mm long with size 1 Lemo Socket $143.00 $130.00 $119.00 Add
407-530 3.0mm dia x 300mm long with size 1 Lemo Plug $143.00 $130.00 $119.00 Add
407-531 3.0mm dia x 300mm long with size 1 Lemo Socket $143.00 $130.00 $119.00 Add
407-535 3.0mm dia x 500mm long with size 1 Lemo Plug $144.00 $131.00 $120.00 Add
407-536 3.0mm dia x 500mm long with size 1 Lemo Socket $144.00 $131.00 $120.00 Add
407-540 3.0mm dia x 1000mm long with size 1 Lemo Plug $148.00 $135.00 $125.00 Add
407-541 3.0mm dia x 1000mm long with size 1 Lemo Socket $148.00 $135.00 $125.00 Add
407-545 3.0mm dia x 2000mm long with size 1 Lemo Plug $155.00 $142.00 $130.00 Add
407-546 3.0mm dia x 2000mm long with size 1 Lemo Socket $155.00 $142.00 $130.00 Add
407-700 Matching Lemo Socket $52.00 $47.60 $43.50 Add
407-701 Matching Lemo Plug $52.00 $47.60 $43.50 Add

Type T - 321 Stainless Steel Sheath (400°C)

Order Code Description 1 - 9 10 - 24 25+ Buy
407-550 1.5mm dia x 150mm long with size 1 Lemo Plug $143.00 $130.00 $119.00 Add
407-551 1.5mm dia x 150mm long with size 1 Lemo Socket $143.00 $130.00 $119.00 Add
407-555 1.5mm dia x 300mm long with size 1 Lemo Plug $143.00 $130.00 $119.00 Add
407-556 1.5mm dia x 300mm long size 1 Lemo Socket $143.00 $130.00 $119.00 Add
407-560 1.5mm dia x 500mm long with size 1 Lemo Plug $144.00 $131.00 $120.00 Add
407-561 1.5mm dia x 500mm long size 1 Lemo Socket $144.00 $131.00 $120.00 Add
407-565 1.5mm dia x 1000mm long with size 1 Lemo Plug $148.00 $135.00 $125.00 Add
407-566 1.5mm dia x 1000mm long size 1 Lemo Socket $148.00 $135.00 $125.00 Add
407-570 1.5mm dia x 2000mm long with size 1 Lemo Plug $155.00 $142.00 $130.00 Add
407-571 1.5mm dia x 2000mm long size 1 Lemo Socket $155.00 $142.00 $130.00 Add
407-575 3.0mm dia x 150mm long with size 1 Lemo Plug $143.00 $130.00 $119.00 Add
407-576 3.0mm dia x 150mm long size 1 Lemo Socket $143.00 $130.00 $119.00 Add
407-580 3.0mm dia x 300mm long with size 1 Lemo Plug $143.00 $130.00 $119.00 Add
407-581 3.0mm dia x 300mm long size 1 Lemo Socket $143.00 $130.00 $119.00 Add
407-585 3.0mm dia x 500mm long with size 1 Lemo Plug $144.00 $131.00 $120.00 Add
407-586 3.0mm dia x 500mm long size 1 Lemo Socket $144.00 $131.00 $120.00 Add
407-590 3.0mm dia x 1000mm long with size 1 Lemo Plug $148.00 $135.00 $125.00 Add
407-591 3.0mm dia x 1000mm long size 1 Lemo Socket $148.00 $135.00 $125.00 Add
407-600 3.0mm dia x 2000mm long with size 1 Lemo Plug $155.00 $142.00 $130.00 Add
407-601 3.0mm dia x 2000mm long size 1 Lemo Socket $155.00 $142.00 $130.00 Add
407-700 Matching Lemo Socket $52.00 $47.60 $43.50 Add
407-701 Matching Lemo Plug $52.00 $47.60 $43.50 Add
